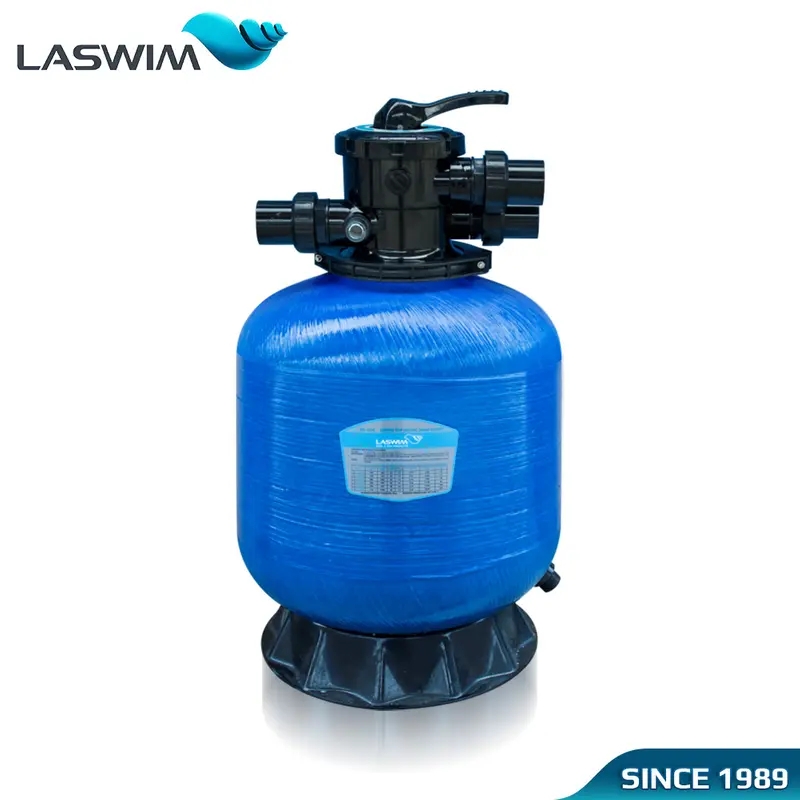

ADG Series Sand Filter

Top mount sand vertical filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive extra-thick fibreglass filament winding, all internal components and connections are injection moded PVC. UV-resistance surface allows working under sunshine. Easy-to-use six-position valve makes you select any of the valve/filter operation in a proper way.

Features

- Six-way Multiport Valve Function:

FILTER (Normal filteration and vacuuming).

BACKWASH (Clean filter by reversing the flow).

RINSE (Used after backwash to flush dirt from valve).

WASTE (By-pass filter, used for vacuuming to waste or lowering water level).

RECIRCULATE (By-passes filter for circulating water to pool).

CLOSE


See more

Detail

Resource

  • Specification
  • Manual
Model

Pipe Size

inches

Filter Area

(m2)

Design Flow

(m3/h)

 0.5-0.8mm Sand Weight Kg

 Tank Volume (m3

Valve Volume (m3)

Tank Diameter(mm)

Volume Weight (Kg)

WL-ADG35

1.50.104.5250.060.024.53

WL-ADG40

1.50.136.5340.090.025.53
WL-ADG4501.50.168.0500.150.027.03
WL-ADG5001.50.2311.5800.200.029.83

WL-ADG650

1.50.3216.01600.320.0213.03

WL-ADG700

1.50.4020.02200.420.0218.53

WL-ADG800

2.00.5025.03700.680.0341.05

WL-ADG900

2.00.6430.04470.950.0348.05

WL-ADG1000

2.00.7935.07001.290.0358.05

WL-ADG1200

2.01.1350.012002.260.0368.05
WL-ADG14002.01.5368.017003.500.03110.05


Maximum working pressure: 36psi/2.5kg/cm²

Maximum operating water temperature≤ 50 degree C

Maximum testing pressure: 60psi

Optional: Maximum working pressure: 58psi/4.0kg/c㎡

Maximum operating water temperature ≤50℃

Maximum testing pressure: 86psi
