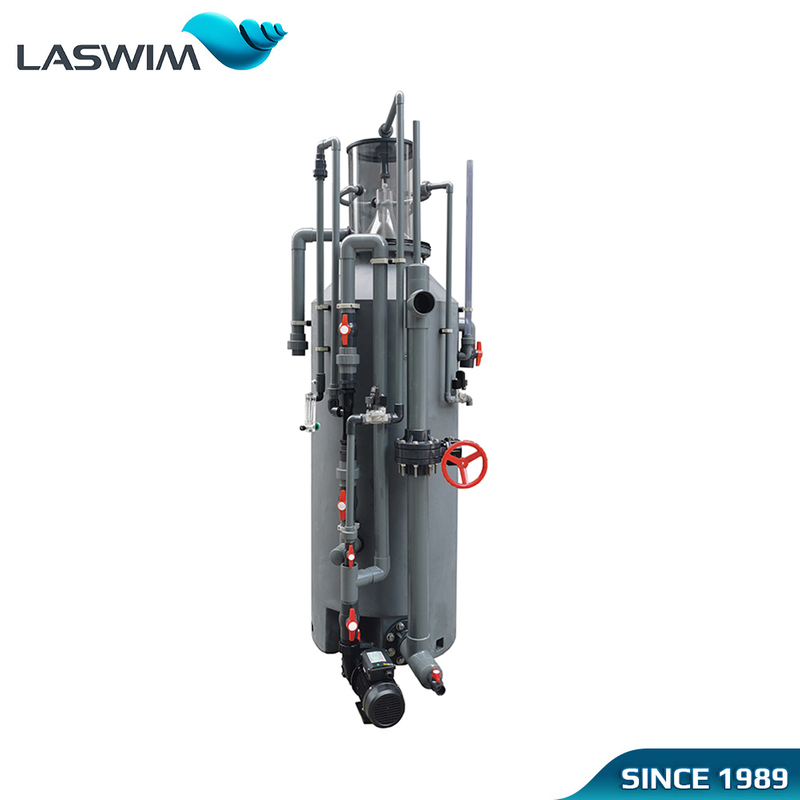

LLDPE Protein Skimmer

The body of this series protein skimmer is made from UV rated linear low density polyethylene (LLDPE) material, which makes the protein skimmer rugged, ozone safe and UV-resistant, and adopts rotationally molded design, it is once piece, eliminating potential leaking and failures from seams and weld points. Equipped with an automatic washdown system and touch screen controller for a simple and convenient programming of rinse cycles for the internal and external cone. It is designed to carry out the protein fractionation process eficiently and help to save the operation and maintenance cost. At the same time, stocking densities and growth rates are all enhanced and animal health improved.

Features

- High venturi air flow direct injection system

Rotation molded LDPE main Body

Vanstone inlet flange

Cost saving dual seawater & potable water top cup rinse system

Individual electronic timer control and electrical solenoid for rinse system

Special designed venturi injection pump

Adjustable air flow meter for ozone injection

Anti-siphon design

Built-in floor anchoring point.

All clear acrylic top cup and funnel

Ozone vent and fresh air make up vent on top cup

Pillow base included for venturi pump

Retracting top cup seawater rinse spray head

Easy to install, normally 3-6 hours for complete installation with minimum tool


See more

Detail

Resource

  • Specification
  • Manual
Pump materialPPO+PPE+30%FRP
Shaft316SS+PVC
Mechanical sealHigh density silicon carbide surface
O-ringviton(high corrosion resistance)
Water proof standardIP55(ODP)
Pump housingAluminum alloy
Power supply220V/1N/50Hz,380V/3N/50Hz
Motoser2950rpm
Liquid temperature5-50ºC
Ambient temperature≤50ºC
Max. working pressure0.3MPa
