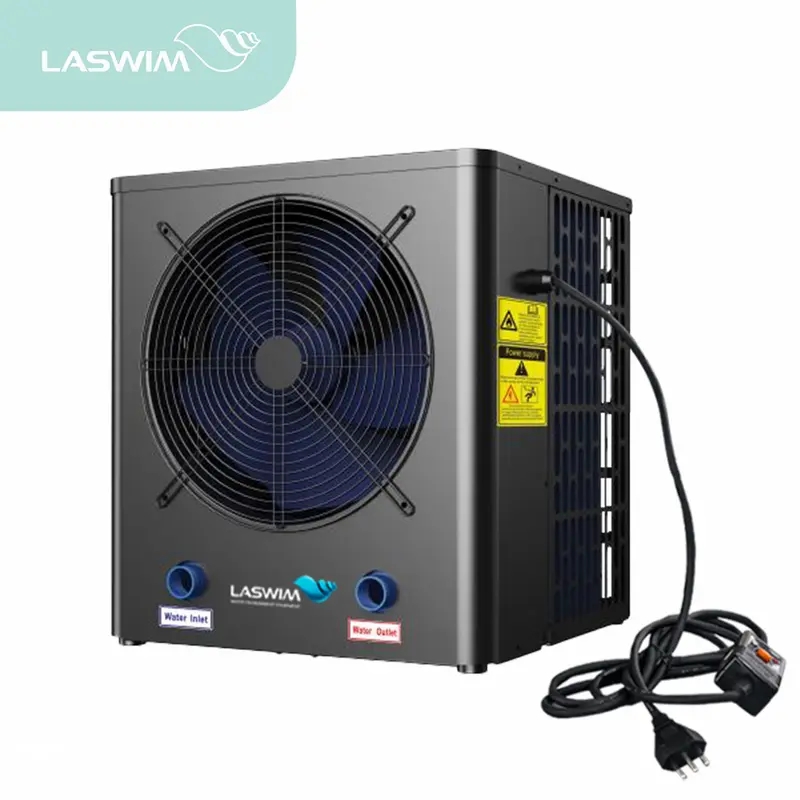

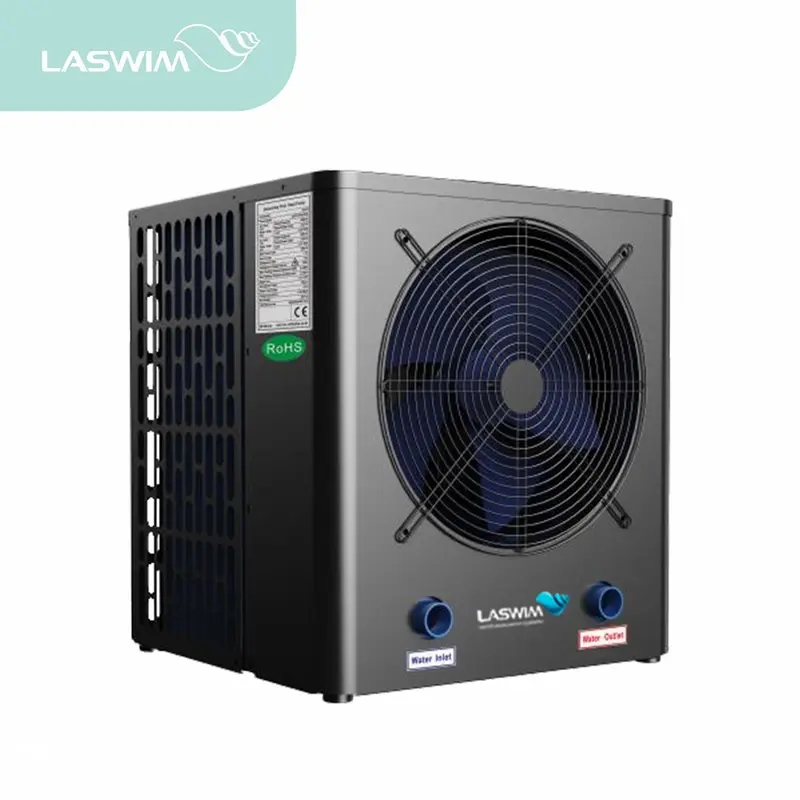

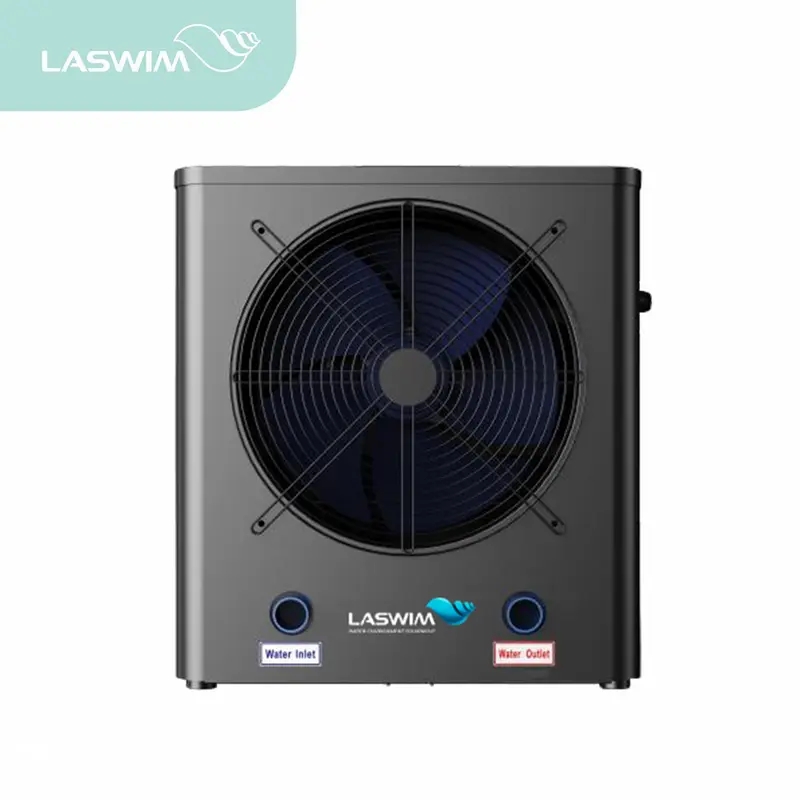

Mini Swimming Pool Heat Pump MN series

Laswim mini pool heat pump allows you to enjoy the pool in perfectly warm water. It incorporates the latest technological innovations in pool heat pumps with the aim of offering an optimized water temperature for reduced and controlled energy consumption. Thismini swimming pool heat pump is compatible with all types of water treatment, including salt-water treatments, thanks to its titanium heat exchanger.

Features

- Ideal for above-ground pools, spas and splash pools

- Simple and intuitive control panel

- Light weight and compact design

- Low noise operation

- Plug and play

- Easy to use above 7ºC

- Suitable for 32mm or 38mm water connection

Detail

Resource

Specification
Manual

Model	LAS10-MN	LAS15-MN	LAS18-MN	LAS22-MN
Performance condition: Air: 27C / Water: 27C /Humidity: 80%
Heating capacity (kW)	2.9	4.2	5.2	6.5
Rated input power(kw)	0.58	0.83	1.07	1.32
Rated input current(A)	2.53	3.61	4.76	6.02
C.O.P	4.98	5.04	4.9	4.88
Performance condition: Air 15°C/ Water 26°C/ Humid. 70%
Heating capacity (kW)	1.8	2.9	4.1	5.1
Rated input power(kw	0.55	0.76	1.04	1.29
Rated input current(A)	2.39	3.31	4.73	5.87
C.O.P	3.3	3.8	3.92	3.91
Technical specifications
Advised pool volume (m³) *	5-15	10-20	12-22	12-25
Operating air temperature (°C)	7-43
Max.current(A)	368	4.64	5.75	7.15
Power cable	Rubber cable with RCD main plug (plug & play)
Plug type	EU or UK
Power supply	220-240V/1Ph/50Hz
Heat exchanger	Spiral titanium tube in PVC
Compresso	Rotary
Refrigerant	R32/R410A
Casing	Galvanized steel
Control	LED digital display
Advised water flow(m³/h)	1-2	1-2	1.5-2.5	2-3
Sound level @1m	48	45	47	48
Water connection	32	32	38	38
Net weight(kg)	15	19	26	29
Gross weight(kg)	17	22	32	35
Net dimension LxWxH (mm)	305303367	369327440	440440490	440440490
Packing size(mm)	360390420	425415485	530520550	530520550
Qty per 20FT / 40HQ (sets)	440/1100	260/700	160/440	160/440

Remarks:

The above data will be subject to change without further notice, please refer to the nameplate on the unit.

Advised pool volume applies to a private pool with an isothermal cover, from April to September.
