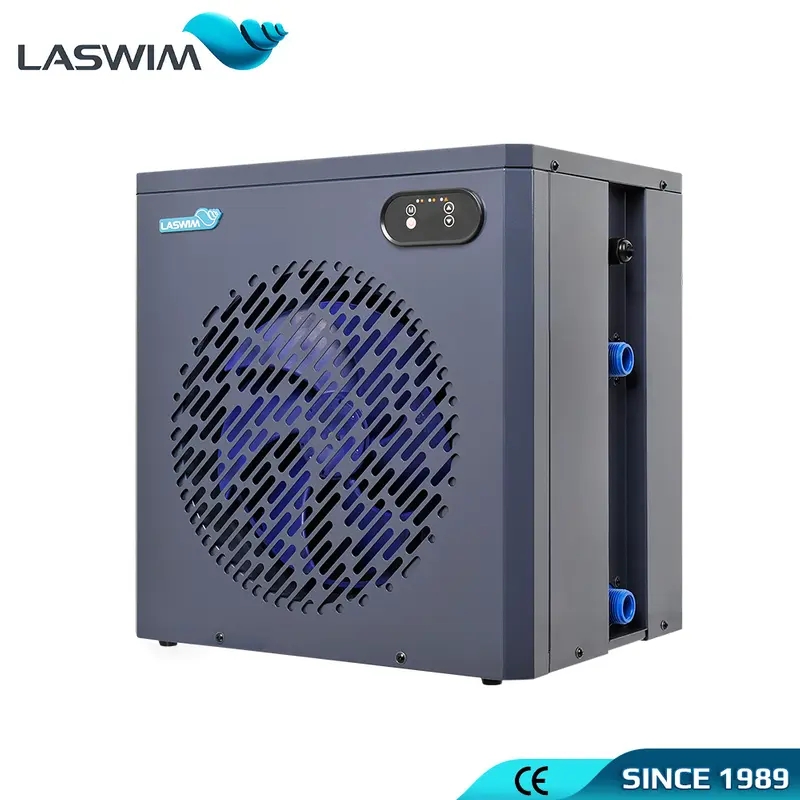

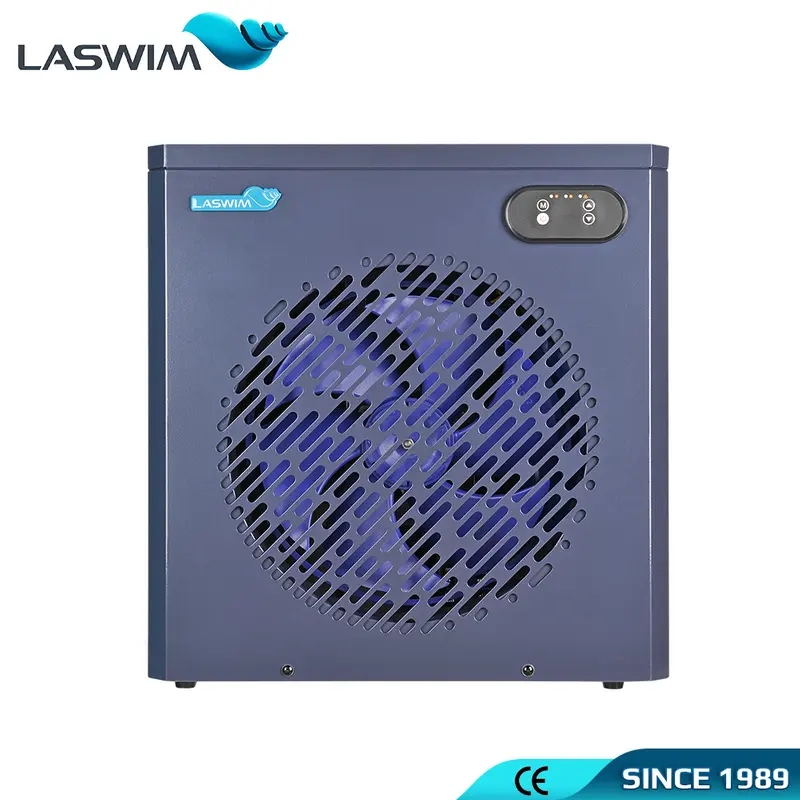

Inverter Mini Swimming Pool Heat Pump IMN Series

Laswim inverter mini swimming pool heat pump IMN series is the best choice for various small above ground pools, you can easily enjoy a comfortable heated swimming pool in your backyard, even on not-so-beautiful summer days. Thanks to the inverter technology, it absorbs free heat from the environment and passes it on to the water for reduced and controlled energy consumption.

Features

- Ideal for above-ground pools, spas and splash pools

- Operating air temperature 5ºC-43 ºC

- Easy installation (quick connection)

- Simple and intuitive control panel

- Low noise operation

- Filled with environmentally friendly R32 gas

- Titanium heat exchanger

- 1.5m wire cable&plug with RCD protection

- Suitable for 32mm or 38mm water connections

Detail

Resource

Specification
Manual

Model	LS03-MN1-S4C6	LS04-IMN1-S4C6	LS05-IMN1-S4C
Performance condition: Air: 27C / Water: 27C /Humidity: 80%
Heating capacity (kW)	1.3-3.5	1.5-4.5	2.0-5.6
Heating capacity (BTU)	11740	15360	18780
COP	13.2-5.4	13.1-5.2	13.1-6.0
Average COP at 50% Speed	8.1	8.6	9.5
Performance condition: Air 15°C/ Water 26°C/ Humid. 70%
Heating capacity (kW)	0.9-2.4	1.1-3.2	1.5-3.9
Heating capacity (BTU)	8220	10750	13450
COP	7.6-4.1	7.7-4.2	7.4-4.0
Average COP at 50% Speed	5.7	60	6.7
Technical specifications
Advised pool volume (m³) *	0~15	5~20	8~25
Operating air temperature (°C)	5ºC-43ºC
Compressor	Twin-rotary Compressor
Heat exchanger	Titanium
Power supply	220-240V / 1Ph / 50Hz
Heat exchanger	Spiral titanium tube in PVC
Compresso	Twin-rotary DC inverter
Refrigerant	R32
Casing	Galvanized steel
Rated input power (kW)	0.09-0.65	0.12-0.87	0.15-0.93
Input power at 50% Speed (kW)	0.2	0.3	0.35
Rated input current (A)	0.4-2.8	0.5-3.8	0.6-4.1
Maximum input current (A)	3.6	5	5.4
Power cord (mm²)	3*1.0	3*1.0	3*1.0
Fan speed (rpm)	850-900	850-900	850-900
Sound level at 1m dB(A)	48-52.5	48-52.5	48-52.5
Sound level by 50% speed 1m dB(A)	50	50	50
Sound level at 10m dB(A)	21~32.5	22~32.5	22~33.5
Advised water flux (m³/h)	1~2	1~2.5	2~3.5
Water connection (mm)	32/38
Water pressure drop (kPa)	15
R32 Net weight (g)	320	350	400
Gross weight (kg)	26	27	28
Net weight (kg)	24	25	26
Net dimension LxWxH (mm)	440x330x486	440x330x486	440x330x486
Packing size LxWxH (mm)	520x350x490	520x350x490	520x350x490
Qty per 20FT / 40HQ (sets)	264/660	264/660	264/660

Remarks:

The above data will be subject to change without further notice, please refer to the nameplate on the unit.

Advised pool volume applies to a private pool with an isothermal cover, from April to September.
