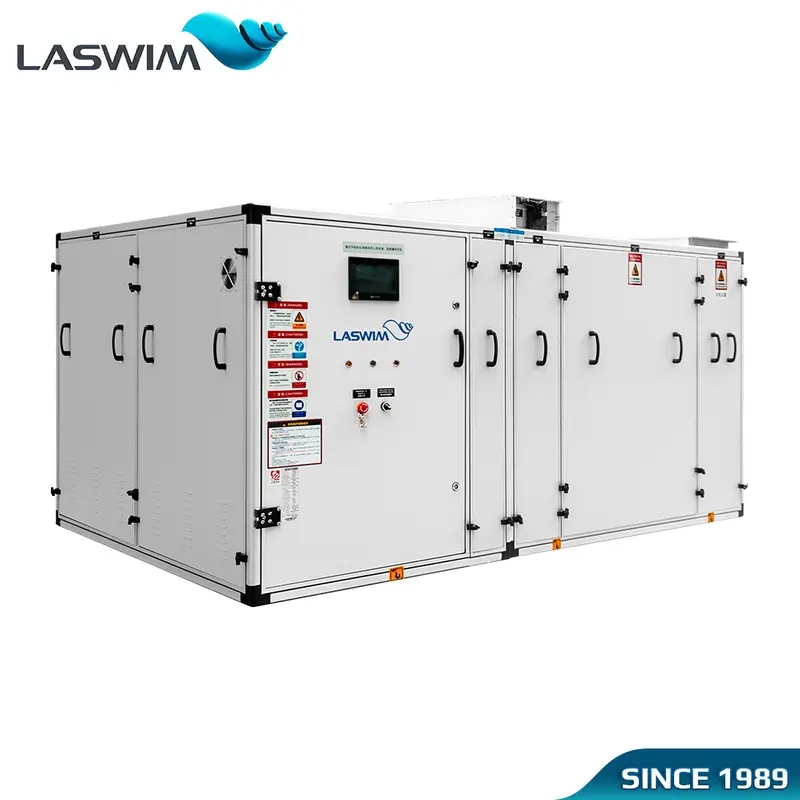

Multifunction Dehumidifier

INDOOR SWIMMING POOL MULTIFUNCTION DEHUMIDIFIER
DYC SERIES
With more than 30 years of experience in the swimming pool field, we have developed a advanced and dedicated dehumidification equipment for indoor swimming pools to provide a quality and comfortable indoor pool environment while keeping operating costs low. It is designed according to the actual needs of the harsh swimming pool environment in terms of humidity, water temperature, air temperature and engineering application environment. This dehumidification equipment integrates dehumidification, constant temperature, water heating, heat recovery, and fresh air handing. It is suitable for stadiums, natatoriums in schools and universities, commercial pools and hotel leisure pools, therapy pools, etc.

Features

- Ultra compact design, small footprint

- One machine with multiple function to meet all seasonal needs of swimming pool

- Automatic control, intelligent, convenient and worry-free

- Large circulating air volume design

- Smart design, excellent performance

Detail

Resource

Specification
Manual

Model	LAS40-DYC	LAS50-DYC	LAS65-DYC	LAS80-DYC	LAS100-DYC	LAS120-DYC
Dehumidification capacity(Kg/h)	40	50	65	80	100	120
Heat recovery capacity(kW)	63	79	110	136	164	192
Evaporator cooling capacity(kW)	56	69	95	118	143	167
Air volume(m³/h)	10000~12500	11000-15000	14000~18000	16000-20000	20000-27000	23000~31000
External residual pressure(Pa)	450	450	450	450	450	550
Power supply(V/P/Hz)	380V/3N/50Hz
Rated input power(kW)	21.62	28.46	33.66	42.04	50.74	59.94
Rated input current(A)	62	81	96	120	145	171
Net weight(Kg)	1550	1650	1750	2050	2350	2550
L(mm)	3885	3985	4085	4485	5135	5385
DimensionW(mm)	1534	1735	1735	1834	2070	2070
H(mm)	1370	1370	1670	1900	1900	1900
Fan
Quantity(Set)	2
Fan type	Centrifugal
Fan motor total input power(kW)	8.5	11.5	11.5	15	18.5	22.5
Compressor
Quantity(Set)	1	1	1	1	2	2
Compressor type	Scroll
Compressor total input power(kW)	12.2	15.1	20.3	25.2	30.4	35.6
Cooling coil(Optional)
Cooling capacity(kW)	60	60	80	120	120	160
Cold water flow rate(m³/h)	10.3	10.3	13.8	20.7	20.7	27.6
Heating capacity(kW)	7.2	7.2	9.8	14.6	14.6	19.8
Pressure drop(KPa)	40	40	42	45	45	48
Inlet/outlet size	DN40	DN40	DN50	DN65	DN65	DN65
Pool water condenser
Heat exchanger type	Titanium shell and tube type
Heating capacity(kW)	21	26	33	41	49	58
Working pressure resistance(MPa)	0.4
Water flow rate(m³/h)	6	7	9	12	14	17
Inlet/outlet size	De50	De50	De50	De63	De63	De63
Outdoor condenser quantity(Set)	1	1	1	1	1	1
Input power(kW)	0.92	0.92*2	0.92*2	0.92*2	0.92*2	0.92*4
Dimension LWH(mm)	12329721110	16519361037	16519361037	198110601315	198110601315	6519361037 16519361037
Connecting pipe diameter	φ22/φ19	φ28/φ22	φ35/φ28	φ35/φ28	φ22/φ19 φ35/φ28	φ28/φ22 φ35/φ28
Outdoor condenser model	LAS12PL	LAS15PL	LAS20PL	LAS25PL	LAS30PL	LAS15PL+LAS20PL

Model	LAS140-DYC	LAS150-DYC	LAS165-DYC	LAS180-DYC	LAS100-DYC
Dehumidification capacity(Kg/h)	140	150	165	180	200
Heat recovery capacity(kW)	217	245	271	299	327
Evaporator cooling capacity(kW)	189	213	236	260	284
Air volume(m³/h)	26000-34000	30000~40000	32000~42000	36000-46000	40000-52000
External residual pressure(Pa)	550	550	550	550	550
Power supply(V/P/Hz)	380V/3N/50Hz
Rated input power(kW)	64.54	73.14	78.04	86.74	95.84
Rated input current(A)	184	208	222	247	273
Net weight(Kg)	2850	3050	3350	3500	3650
L(mm)	5435	5500	5700	6000	6000
DimensionW(mm)	2070	2200	2400	2400	2650
H(mm)	2200	2200	2300	2450	2450
Fan
Quantity(Set)	2
Fan type	Centrifugal
Fan motor total input power(kW)	22.5	26	26	29.5	33.5
Compressor
Quantity(Set)	2	2	2	3	3
Compressor type	Scroll
Compressor total input power(kW)	40.2	45.3	50.2	55.4	60.5
Cooling coil(Optional)
Cooling capacity(kW)	160	180	200	240	300
Cold water flow rate(m³/h)	27.6	31	34.4	41.3	51.6
Heating capacity(kW)	202	227	252	302	37.8
Hot water flow rate(m³/h)	19.8	22.1	25	30.1	36.8
Pressure drop(KPa)	48	49	49	51	52
Inlet/outlet size	DN65	DN65	DN80	DN80	DN100
Pool water condenser
Heat exchanger type	Titanium shell and tube type
Heating capacity(kW)	65	73	81	90	98
Working pressure resistance(MPa)	0.4
Water pressure drop(KPa)	46	47	47	48	50
Max.water temperature(℃)	40
Water flow rate(m³/h)	19	21	23	26	28
Inlet/outlet size	De63	De63	De63	De75	De75
Outdoor condenser quantity(Set)	1	2	2	2	2
Input power(kW)	1.7*2	0.932/0.922	0.92*2	0.92*2	0.932/1.72
Dimension LWH(mm)	230611381432	16519361037 19811060131	198110601315 198110601315	198110601315 198110601315	16519361037 230611381432
Connecting pipe diameter	φ35/φ28 φ35/φ28	φ35/φ28 φ35/φ28	φ35/φ28 φ35/φ28	φ35/φ28 φ35/φ28	φ35/φ28 φ35/φ28 φ22/φ19
Outdoor condenser model	LAS40PL	LAS20PL+LAS25PL	LAS25PL+LAS25PL	LAS25PL+LAS30PL	LAS20PL+LAS40PL

Remarks:

Testing condition: ambient air temperature 29℃, RH65%, pool water condenser inlet water temperature 26℃, outlet water temperature 28℃, outdoor temperature 32℃;

Pool water condenser: if cooling or heating capacity is insufficient, auxiliary cooling/heating coil can be selected according to the actual heat exchange demand. The cooling capacity is calculated as inlet water temperature 60℃.

External residual pressure can be adjusted as required.

Outdoor condenser can be set to a water-cooled condenser according to user’s requirements.

The unit structure can be made into split structure according to user’s requirements.

The data is subject to change without prior notice due to product improvements.
