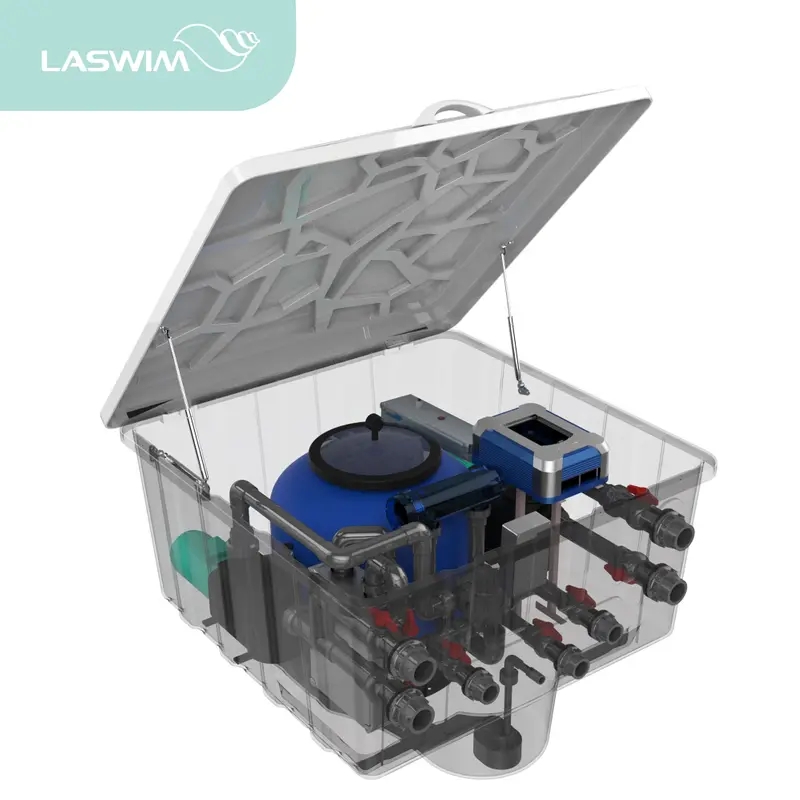

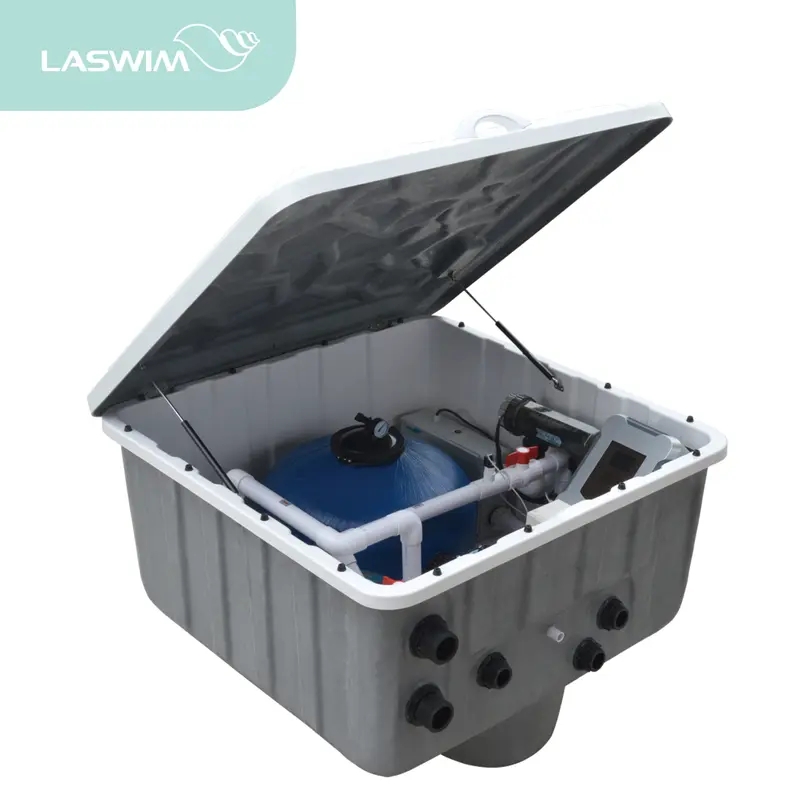

Filtration Unit

Filtration unit is one of the best choices for swimming pool. It is in good appearance, easy to operate and long time use. Different models could be chosen according to different size of swimming pools and actual demand.

Features

Detail

Resource

Specification
Manual

WL-DMT Specification

Model	Main part
WL-DMT-8	BCG450 sand filter + 0.75HP pump + chemical feeder
WL-DMT-12	BCG500 sand filter + 1HP pump + chemical feeder
WL-DMT-16	BCG650 sand filter + 1.5HP pump + chemicalfeeder
WL-DMT-20	BCG700 sand filter + 2HP pump + chemicalfeeder
WL-DMT-25	BCG800 sand filter + 2HP pump + chemical feeder

WL-DMT Specification

Model	Main part
WL-MMT-8	BCG450 sand filter + HLLFO75M circulation pump + HLLF300M Massage pump +submersible pump + EC8 salt-chlorine generator
WL-MMT-12	BCG500 sand filter + HLLF100M circulation pump + HLLF300M Massage pump +submersible pump + EC12 salt-chlorine generator
WL-MMT-16	BCG650 sand filter + HLLF150M circulation pump+ HLLF300M Massage pump +submersible pump + EC16 salt-chlorine generator
WL-MMT-20	BBCG700 sand filter + HLLF200M circulation pump+ HLLF300M Massage pump +submersible pump + SQ30 salt-chlorine generator
WL-MMT-25	BCG800 sand filter + HLLF200M circulation pump+ HLLF300M Massage pump +submersible pump +SQ40 salt-chlorine generator

WL-GMT Specification

Model	Main part
WL-GMT-8	BCG450 sand filter+PSH/1.5HP Circulation pump+ PSH/3HP massage pump+ EC8 salt-chlorine generator + 28W UV Sterilizer+ submersible pump
WL-GMT-12	BCG500 sand filter+PSH/1.5HP Circulation pump+ PSH/3HP massage pump+ EC12 salt-chlorine generator + 28W UV Sterilizer+ submersible pump
WL-GMT-16	BCG650 sand filter+PSH/1.5HP Circulation pump+ PSH/3HP massage pump+ EC16 salt-chlorine generator + 28W UV Sterilizer+ submersible pump
WL-GMT-20	BCG700 sand filter+PSH/2HP Circulation pump+ PSH/3HP massage pumP+ SO30 salt-chlorine generator + 28W UV Sterilizer+ submersible pump
WL-GMT-25	BCG800 sand filter+PSH/2HP Circulation pump+ PSH/3HP massage pump+ SQ40 salt-chlorine generator + 28W UV Sterilizer+ submersible pump
