Gutter Grating(WL-BQM)

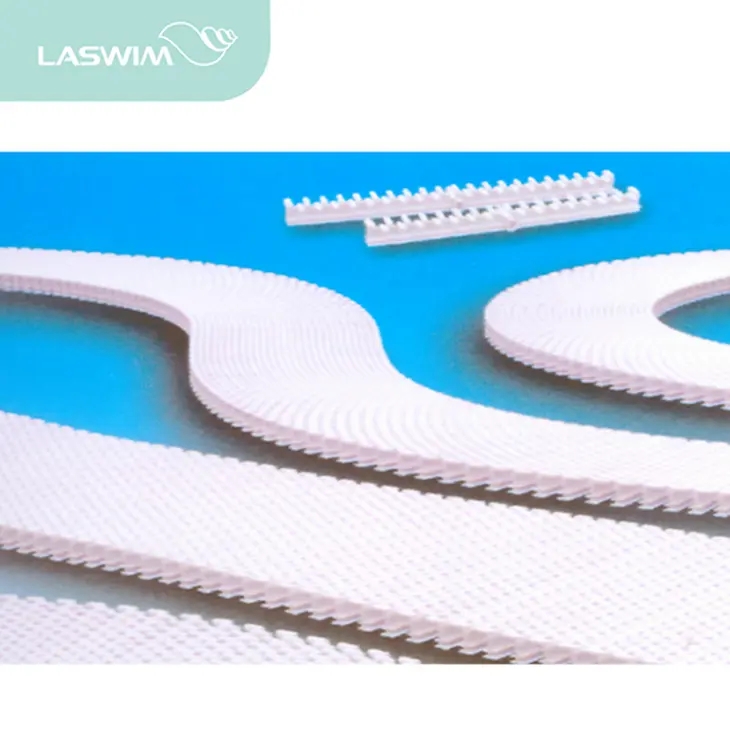

Guttergrating is molded in white UV resistant ABS.Top of grating features and anti-slip finish and it is composed of individual units connecting along a central spine,This design not only allows for easier installation without the need for cutting but also allowing the grating to curve as necessary.

Features

- Comply with the standard of EN-13451 and CJJ122-2008

- Anti-slip, safe, supper strong, durable

- UV-resistant, not easy to fade or break, longer using life

- To be easy to install and flexible to meet a variety of differentswimming pool specifications

- Composed of Part A and Part B as below drawing, Lengthis adjustable

- Can make an arc with minimum radius of 625mm

Detail

Resource

Specification
Manual

Model	Width of Gutter D(mm)	Width of Panel c(mm)
WL-AQM180	180	178
WL-AQM200	200	198
WL-AQM250	250	248
WL-AQM300	300	298

Model	Width of Gutter D(mm)	Material
WL-BQM180	180	ABS
WL-BQM250	250	ABS
WL-BQM300	300	ABS

Model

Width of Gutter

D(mm)

Material

WL-BQM180

180

ABS

WL-BQM250

250

ABS

WL-BQM300

300

ABS

Model	Height x Width(mm)	Material
WL-CQM180	25x180	ABS
WL-CQM250	25x180	ABS
WL-CQM300	25x180	ABS

Model	Length x Width(mm)	Material
WL-DQM200	300x200	ABS
WL-DQM350	350x250	ABS
WL-DQM375	375x250	ABS

Model	L(mm)	Ws (mm)	H (mm)	R (mm)	r (mm)
WL-HQM250	250	29	25	625	375
