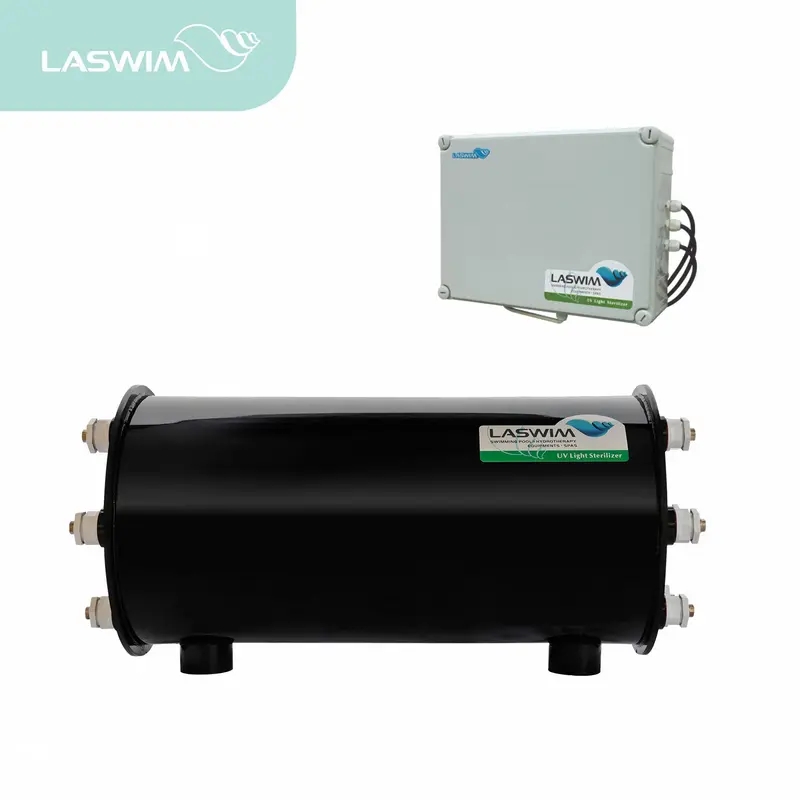

UV Sterilizer Disinfecting Equipment WL-UV

Features

Special safe design for public swimming pool and private pool. No risk to swimmer because of safety voltage of 12V

Different from the normal revolving design,it adopts particular buckle for UV tube to avoid its damage during installation

It uses purely physical method to sterilize the pool water,no chemical residue,non-corrosive,non-toxic side effect after sterilizing by UV sterilizer.No health hazards to human skin and body

Compared with CH and ozone generator,UV sterilizer is easy to install,economical and low maintenance too

A humanistic design to caution the working situation of UV sterilizer by LED light,and this make the repair and maintenance so easy

The sterilization rate of bacteria and virus could reach 99% to 99.9% within 2s,includes flu,hepatitis virus,coli,staphylococci,bacillus subtilis,ect.

See more

Detail

Resource

  • Specification
  • Manual
Model

Size(mm)

Power(W)

Desian Flow (m3/h)

Voltage(V)

Lamp Quantity

Inlet/Outlet(Inch)

Life

Ballast
WL-UV14*2460*125*320281.5-21214W*21.5"8000-10000Inductance/Electron
WL-UV14*4L700*ø170563-41214W*41.5"8000-10000Inductance/Electron
WL-UV14*6L700*ø170845-61214W*61.5"8000-10000Inductance/Electron
WL-UV14*8L700*ø2001127-81214W*81.5"8000-10000Inductance/Electron
WL-UV14*10L700*ø2001409-101214W*101.5"8000-10000Inductance/Electron
WLUV14*12L700*ø33016811-121214W*122.0"8000-10000Inductance/Electron
WL-UV14*14L700*ø33019613-141214W*142.0"8000-10000Inductance/Electron
WL-UV14*16L700*ø33022415-161214W*162.0"8000-10000Inductance/Electron
WL-UV14*18L700*ø33025217-181214W*182.0"8000-10000Inductance/Electron
WL-UV14*20L700*ø33028018-201214W*202.0"8000-10000Inductance/Electron
