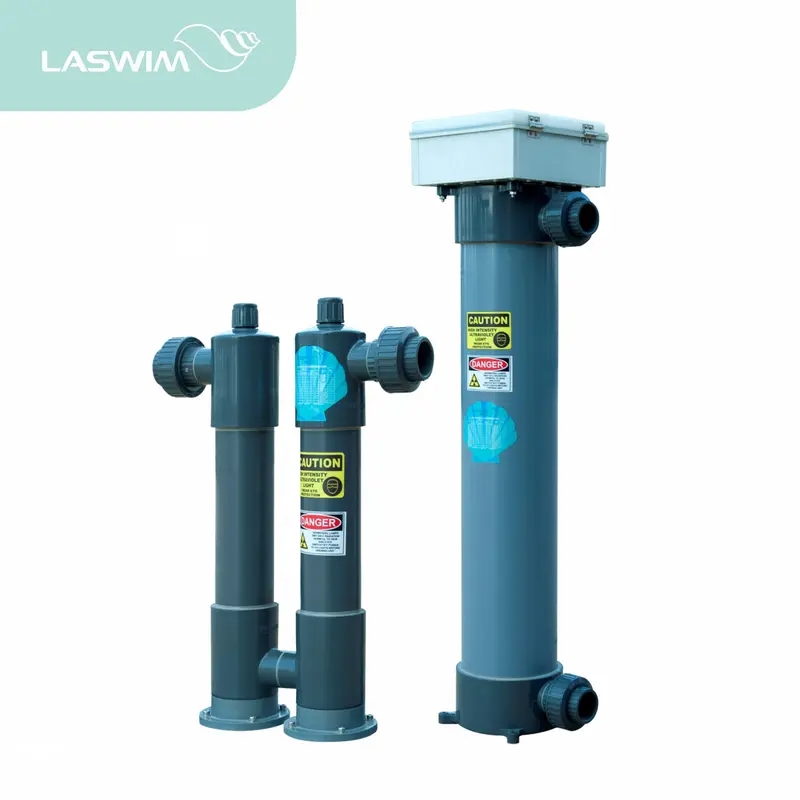

UV Sterilizer For Seawater UVM Series

UVM series UV sterilizer is specially designed for sea water conditions, the reaction chamber is made of noncorrosive and high quality organic material, to ensure a long service life. This UV sterilizer has excellent performance of sterilization and water purification, non-toxic and harmless. It is an ideal solution for aquarium and aquaculture.

Features

- Simple in-line chamber design for easy installation and maintenance.

- PVC plastic chamber is compatible for fresh water, seawater, chlorine feeder and salt chlorinator.

- Lamp service life: 9000-10000 hours of operation, approximate 12 months of continuous working.

- With over temperature protection, preventing damage from overheating.

- General operation and maintenance: Quartz sleeve is to be cleaned every 6-12 months and to be replaced every 24 months. UV lamp is to be replaced every year for continuing service

Detail

Resource

Specification
Manual

Model	Flow rate(m³/h) 16mj/c㎡ UVT=80%	Flow rate(㎥/h) 16mj/cm³ UVT=90%	Flow rate(m³/h) 30mj/c㎡ UVT=80%	Flow rate(㎥/h) 30mj/c㎡ UVT=90%	Product size (mm)	Connection size (inch)	Voltage (V)	Power (W)	Working pressure (kg/c㎡）	Working temperature(℃)
UVMS-1	4.86	5.56	2.6	3.05	D89*786	2	220	33	2.8	2-40
UVMS-2	9.27	10.85	4.97	5.76	D89*786	2	220	65	2.8	2-40
UVMS-3	12.43	14.56	6.55	7.68	D89*946	2	220	85	2.8	2-40
UVMS-4	15.6	18.53	8.36	9.83	D89*1241	2	220	120	2.8	2-40
UVMM-1	5.88	7.23	3.16	3.84	D114*810	2	220	33	2.8	2-40
UVMM-2	11.3	13.9	6	7.46	D114*810	2	220	65	2.8	2-40
UVMM-3	15.14	18.53	8.14	9.94	D114*970	2	220	85	2.8	2-40
UVMM-4	19.21	23.73	10.17	12.66	D114*1265	2	220	120	2.8	2-40
UVML-1	24.18	36.61	12.88	19.43	D219*988	2	220	85	2.8	2-40
UVML-2	30.51	46.1	16.16	24.86	D219*1288	2	220	120	2.8	2-40
UVML-3	/	/	19.05	/	D219*988	2	220	125	2.8	2-40
UVML-4	/	/	30.51	/	D219*1288	2	220	225	2.8	2-40
