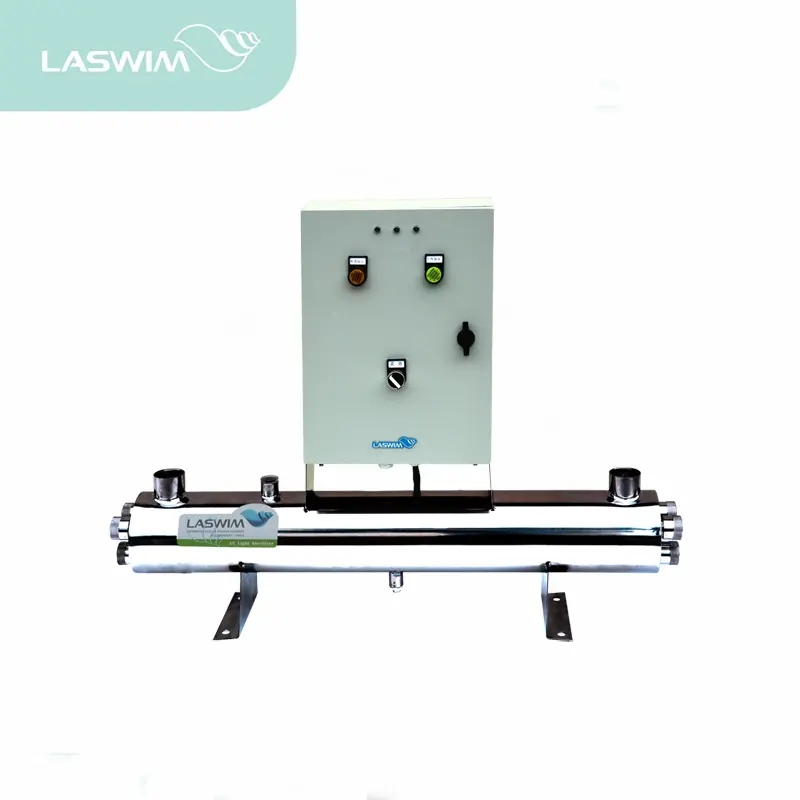

UV Sterilizer Disinfecting Equipment WL-UVC

Ultravilot is accepted all over the world as a reliable ,cost-effective and above all environmentally friendly aquarium water disinfection solution.
UV-C radiation destroys the genetic structure of bacteria and Viruses, and inhibits their ability to multiply, rendering them harmless.

Features

- The reactor use 304 polished stainless steel, the smooth interior leaves no blind spot for sterilization

- The ultraviolet light tube is equipped with a quartz sleeve, to ensure optimal working temperature

- The electrical configuration of the device is suitable to most electrical specifications

- Special exterior design makes the device convenient to use

- All round sterilization, highly efficient, sterilization rate up to 99.9%

- High output, physical sterilization, no side effects, no secondary pollution

- The amount of water that can be sterilized ranges from 5.5-250T/H. The device adapts to swimming pools, spa and water parks of various sizes

Detail

WL-UVC series full flow ultraviolet disinfectant device uses a special made high power ozone free ultraviolet germicidal lamp. The device is also equipped with a micro carbon austenite stainless steel barrel with a specially processed interior, while the exterior of the barrel is also specially polished. The result of this is the water passing the barrel would be radiated and receive 253.7mm(UVC) of ultraviolet with passing through the barrel, providing a excellent disinfectant effect.

*Physical sterilization, no side effects, no secondary pollution.
*Simple, efficient, small occupation.

Resource

Specification
Manual

Model	size(mm)	Rated Flow (㎥/h)	Working Voltage (V)	Cabinet	Cabinet Size LxDxH (mm)	Lamp Power WxQuantity	Inlet & Outlet Diameter DN
WL-UVCn-78	78	5.5	220V/50Hz	304SS	930x108x720	39Wx2	Dn32 screw
WL-UVCn-160	160	12	220V/50Hz	304SS	930x108x720	80Wx2	Dn50 screw
WL-UVC-240	240	20	220V/50Hz	304SS	930x159x780	80Wx3	Dn65
WL-UVC-320	320	25	220V/50Hz	304SS	930x159x780	80Wx4	Dn80
WL-UVC-465	465	35	220V/50Hz	304SS	1630x219x830	155Wx3	Dn100
WL-UVC-620	620	45	220V/50Hz	304SS	1630x219x830	155Wx4	Dn80 or Dn100
WL-UVC-775	775	60	220V/50Hz	304SS	1630x219x1080	155Wx5	Dn150
WL-UVC-930	930	80	220V/50Hz	304SS	1630x325x1180	155Wx6	Dn150
WL-UVC-1280	1280	90	220V/50Hz	304SS	1630x325x1180	320Wx4	Dn150
WL-UVCP-1085	1085	100	220V/50Hz	304SS	1630x325x1180	155wx7	Dn150
WL-UVCP-1395	1395	125	220V/50Hz	304SS	1630x325x1200	155wx9	Dn150
WL-UVCP-1600	1600	110	220V/50Hz	304SS	1630x325x1400	320Wx5	Dn150
WL-UVCP-1705	1705	150	220V/50Hz	304SS	1630x325x1500	155wx11	Dn200
WL-UVCP-1920	1920	130	220V/50Hz	304SS	1630x325x1500	320Wx6	Dn150
WL-UVCP-2240	2240	150	220V/50Hz	304SS	1630x377x1500	320Wx7	Dn150
WL-UVCP-2560	2560	180	220V/50Hz	304SS	1630x377x1500	320Wx8	Dn150
WL-UVCP-2880	2880	200	220V/50Hz	304SS	1630x377x1500	320Wx9	Dn150
WL-UVCP-3840	3840	250	220V/50Hz	304SS	1630x426x1500	320Wx12	Dn250
