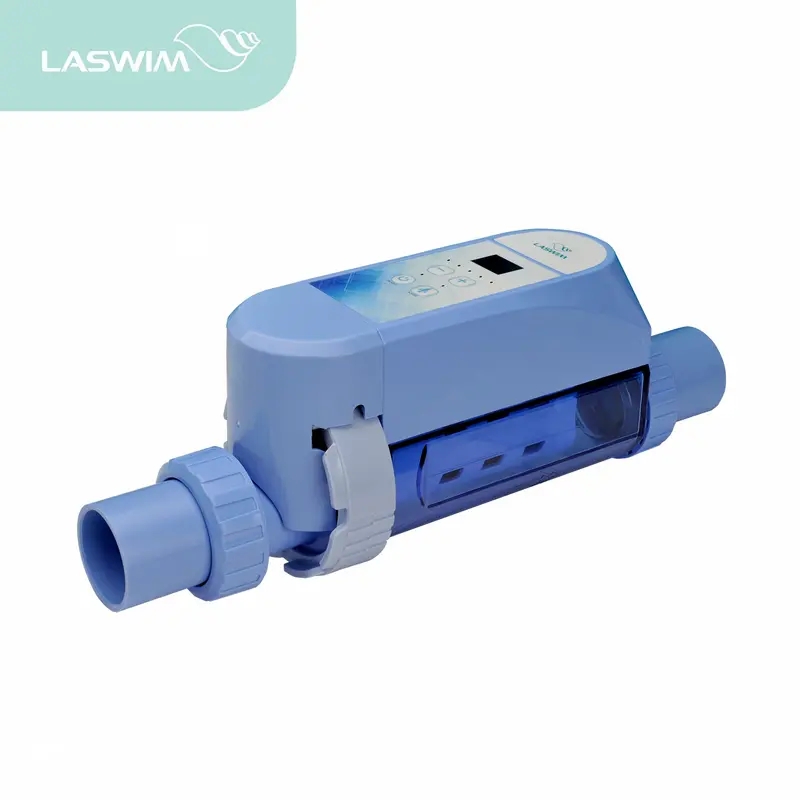

EC Plus Salt Chlorine Generator

The LASWIM EC Plus Series Salt Chlorinator applied advanced micro-computer technology and customer oriented design, to provide the most energy saving and environmental friendly method to sanitize small and medium pools. To achieve this simple, smart and safe chlorine production, all the chlorinator require is only salt.

Features

Using salt electrolysis method to create chlorine has been proven an economical, advanced, practical and reliable way to ensure the sanitization of pool water for small and medium pools. This method has been adapted and used all over the world.

See more

Detail

Simple

-Simple to use

Simply put a corresponding amount of salt into the pool,the EC Plus series salt chlorinator will produce chlorine needed for disinfection automatically.

-Simple to operate

The Push-button operation and the easy-to-view display guarantee its fast operation.

-Simple to install

The smart structure of combined with control panel and cell, making the installation simple and easy.

-Simple to maintain

The titanium in the cell is removable, which makes it easy to clean and maintain.


Smart

-Smart adiustment

Chlorine output is adjustable from 20% to 100% by simply pressing two button, satisfying different needs for different pools.

-Smart cleaning

Self-cleaning function by reversing the polarity automatically, which prevents calcium from accumulating and therefore prolong the cell's lifetime.

-Smart alarm

Fault auto alarm with error code, which is easy to find corresponding solutions.

-Smart protection

When the water temperature is too high or too low, the chlorinator will have warning, in order to protect the unit and prolong the cell's life. The integrated sensors in the cell also ensure that water flow is adequate for safe chlorine generation.

-Smart memory system

Each time the chlorinator restarts, it can automatically initiate the last work status, with this smart memory function.


Safe

-Safe disinfection

Different from those traditional disinfecting equipments, this salt chlorinator doesn't produce any disgusting smells. Discomfort like pinkeye or skin itch can be avoided as well.

-Safe water quality

The salt concentration in the pool matches that of the human body, which does not irritates the skin and improves the swimming experience.

-Safe voltage

Working voltage is 24V, which keeps people safe from the danger of electrocution.

Resource

  • Specification
  • Manual
ModelSize(mm)Max Chlorine production(g/h)Power Input(V)Power Output(V)Working Current(A)Dia.of Water Inlet and OutletMax Pool Volum(m³)
WL-EC Plus 8297.5*122*1538g/hAC100-240VDC24V41.5"/50mm35
WL-EC Plus 12297.5*122*15312g/hAC100-240VDC24V41.5"/50mm50
WL-EC Plus 16297.5*122*15316g/hAC100-240VDC24V41.5"/50mm68
WL-EC Plus 20297.5*122*15320g/hAC100-240VDC24V41.5"/50mm85
WL-EC Plus 30297.5*122*15330g/hAC100-240VDC29V61.5"/50mm127
