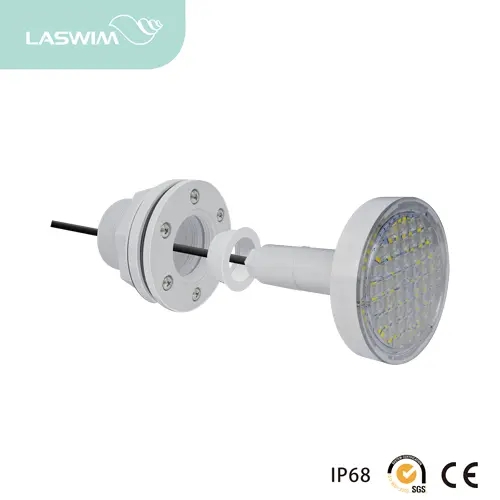

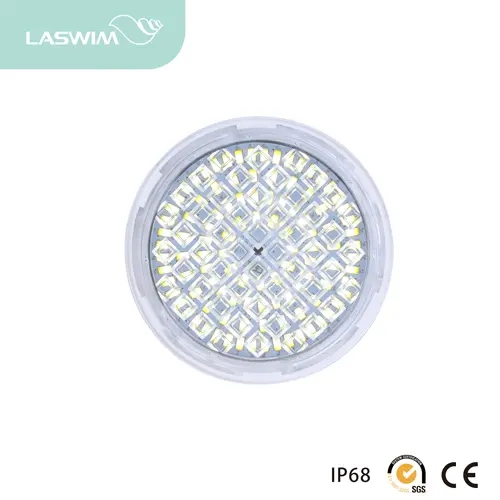

WL-MG Series Swimming Pool Light

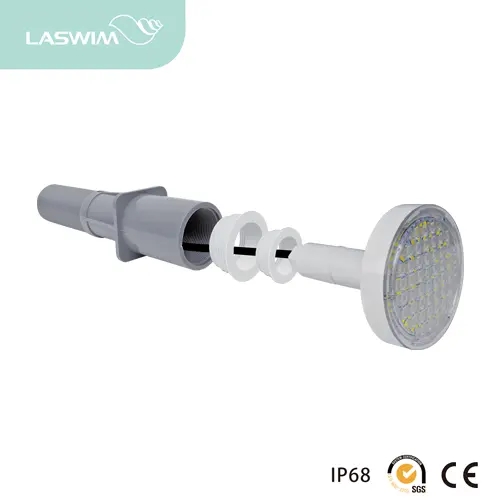

With distinctive design lens, MG light performances extraordinaryand gorgeous lighting effect. Its thread is compatible to connect to1.5" and 2"int. thread wall fitting or wall conduit, very convenientand widely used in all inds of pools and spas, especial differentliner pools.

Features

- High quality silicon gasket, it's not easy to age, seepage and leak.

- Variable voltage range AC 12-20V.

- No flicker, high purity, soft light, no glare.

- High brightness (high lumen), strong light transmission.

- Low power consumption, low heat while working.

- IP68 waterproof standard.

- Color: cool white, warm white, RGB & single blue.

Detail

Resource

Specification
Manual

Model	Power (W)	Voltage (V)	LED QTY	Lumination (lux)	Life Time (h)	Color	Installation type
WL-MG-LED006JTB-C	6W	12-20V	54	485	10,000-20,000	Cool white	1.for fiberglass pool 2.for fiberglass pool+liner 3.for concrete pool(housing type) 4.concrete pool + liner
WL-MG-LED006JTB-W	6W	12-20V	54	485	10,000-20,000	Warm white
WL-MG-LED006JTC	6W	12-20V	54	120	50,000-100,000	RGB color
WL-MG-LED009JTB-C	9W	12-20V	81	760	10,000-20,000	Cool white
WL-MG-LED009JTB-W	9W	12-20V	81	760	10,000-20,000	Warm white
WL-MG-LED009JTC	9W	12-20V	81	200	50.000-100.000	RGB color
WL-MG-LED012JTB-C	12W	12-20V	108	1000	10,000-20,000	Cool white
WL-MG-LED012JTB-W	12W	12-20V	108	1000	10000-20,000	Warm white
WL-MG-LED012JTC	12W	12-20V	108	300	50,000-100,000	RGB color
