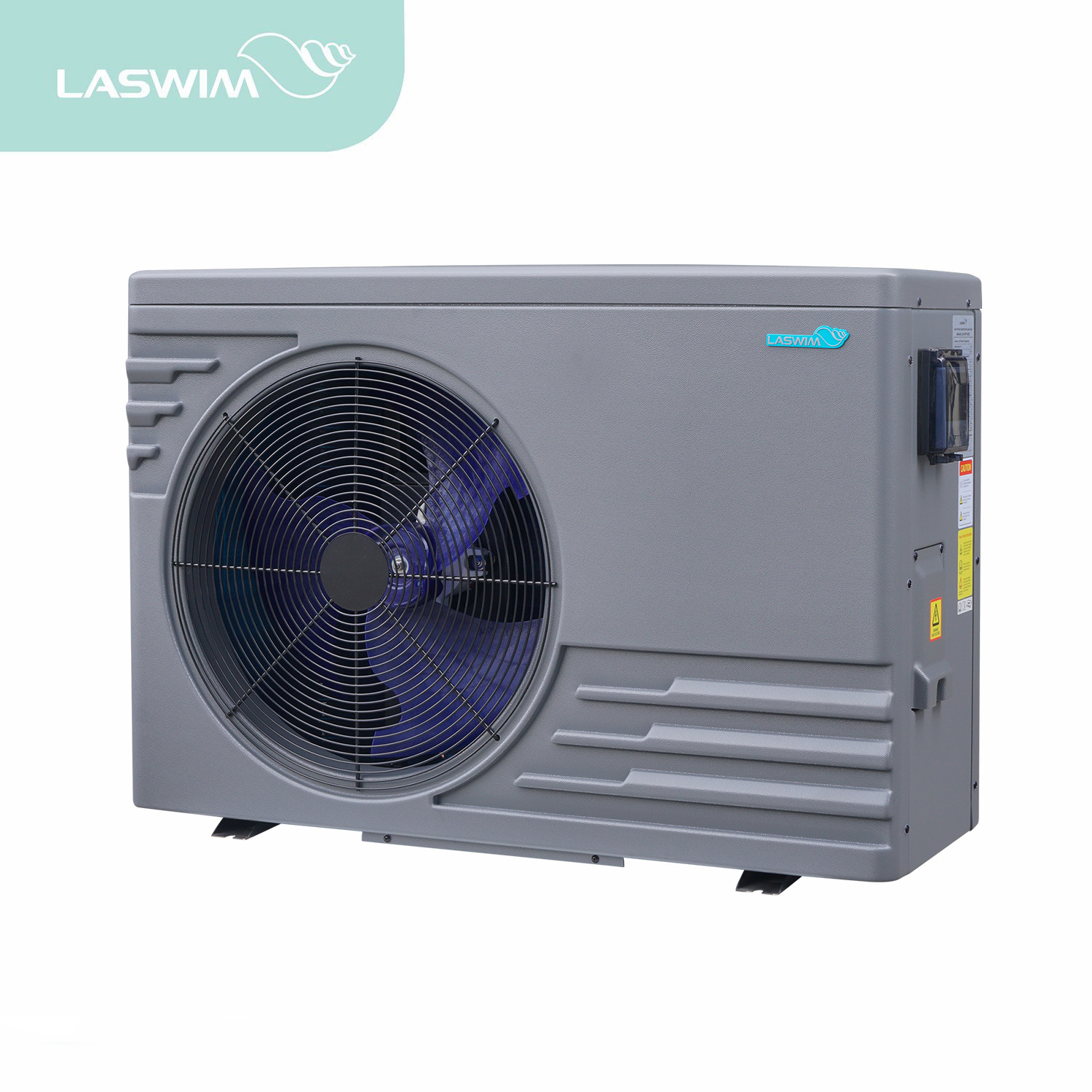

Full DC Inverter Pool Heat Pump LS-IFPT1-S2C1

FULL DC INVERTER POOL HEAT PUMP

Energy Saving·Quiet·Durable·Intelligent

Designed for Residential Pool Heating and Cooling

Designed specifically for private courtyards, villas, and SPA pools, this heat pump harnesses full DC inverter technology to outperform traditional on/off and electric heating systems. It delivers an energy-efficient, comfortable, and reliable constant-temperature solution for residential pools worldwide.

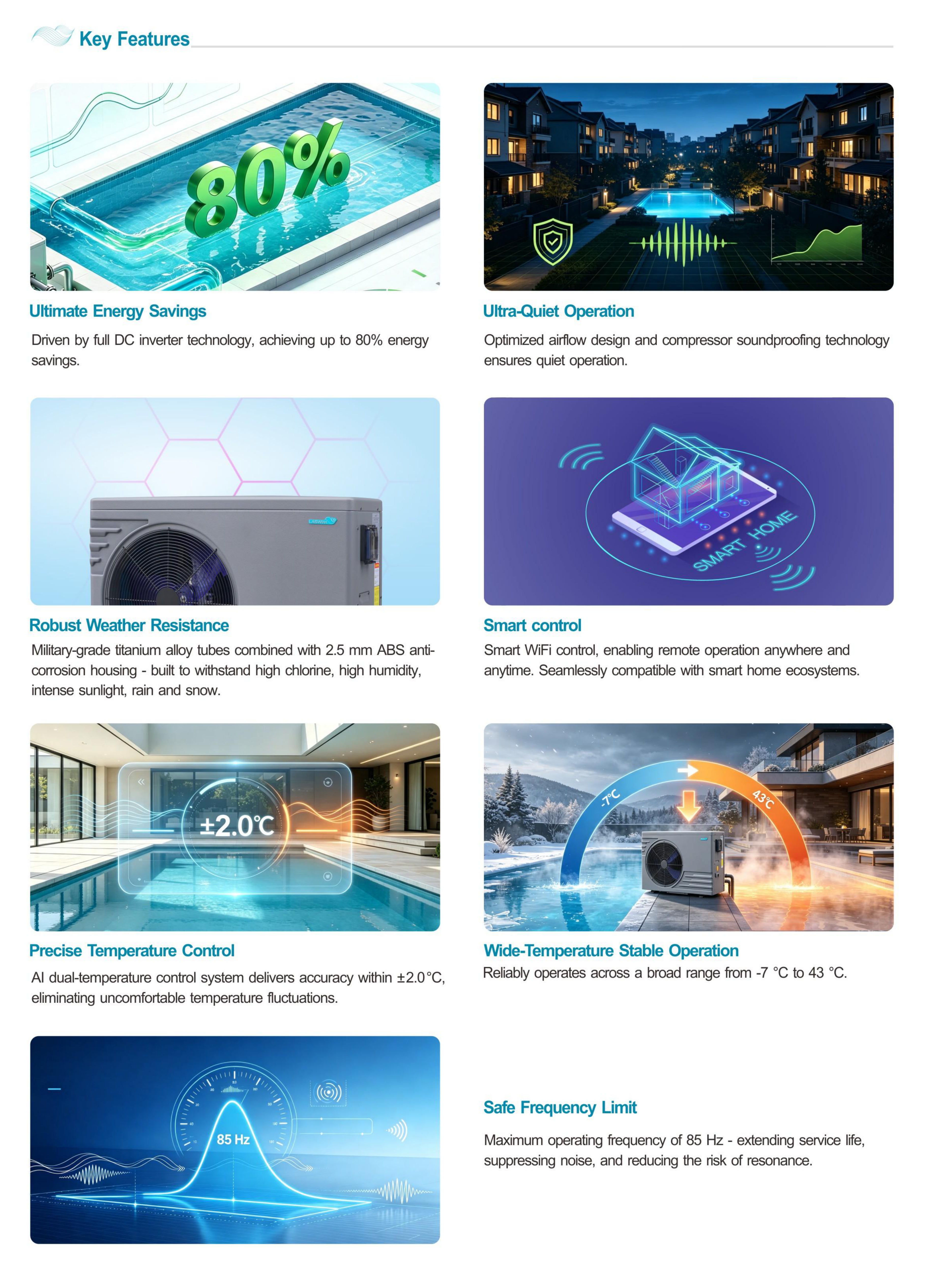

Features

Ultimate Energy Savings

Driven by full DC inverter technology, achieving up to 80 energy savings.

Ultra-Quiet Operation

Optimized airlow design and compressor soundproofing technology ensures quiet operation.

Robust Weather Resistance

Mitary-grade titanium alloy tubes combined with 2.5 mm ABS anti-corosion housing- built to withstand high chlorine, high humidity, intense sunlight, rain and snow.

Smart control

Smart WiFi control, enabling remote operation anywhere and anytime. Seamlessly compatible with smart home ecosystems.

Precise Temperature Control

Al dual-temperature control system delivers accuracy within±2.0℃, eliminating uncomfortable temperature fuctuations.

Wide-Temperature Stable Operation

Reliably operates across a broad range from -7℃ to 43℃.

Safe Frequency Limit

Maximum operating frequency of 85 Hz- extending service life, suppressing noise, and reducing the risk of resonance.

Detail


Resource

Specification
Manual

Model		LS07-IFPT1-S2C1	LS09-IFPT1-S2C1	LS12-IFPT1-S2C1	LS15-IFPT1-S2C1	LS19-IFPT1-S2C1	LS22-IFPT1-S2C1
Performance at Air 28°C, Water 28°C
Heating capacity	KW	1.4 ~ 7	1.9 ~ 8.5	2.6 ~ 11.5	3.2 ~ 14.88	4.1 ~ 19	4.8 ~ 21.2
Heating capacity	Btu/h	4800 ~ 24000	6500 ~ 29000	8900 ~ 39240	10900 ~ 50770	14000 ~ 65000	16400 ~ 72300
COP range	—	14 ~ 5.8	14.1 ~ 6	14.2 ~ 6.1	14 ~ 5.9	14.3 ~ 5.9	14.5 ~ 5.6
Avg. COP at 50% speed	—	9.1	9.3	9.4	9.2	9.3	9.4
Performance at Air 15°C, Water 26°C
Heating capacity	KW	1 ~ 4.9	1.3 ~ 6	1.8 ~ 7.4	2.3 ~ 10.8	2.9 ~ 13.3	3.4 ~ 16
Heating capacity	Btu/h	3400 ~ 16720	4440 ~ 20500	6140 ~ 25250	7850 ~ 36850	9900 ~ 45380	11600 ~ 54600
COP range	—	8.0 ~ 4.5	8.2 ~ 4.5	8.3 ~ 4.7	8.5 ~ 4.5	8.6 ~ 4.6	8.6 ~ 4.5
Avg. COP at 50% speed	—	6.6	6.5	6.6	6.4	6.5	6.6
Performance at Air 35°C, Water 30°C
Cooling capacity	KW	1.9	4.6	5.7	7.3	9.1	10.2
Cooling capacity	Btu/h	6500	15700	19450	24900	31050	34800
EER	—	2.3	4.3	4.3	3.1	4.6	3.8
Advised pool volume	m³	15 ~ 30	20 ~ 40	35 ~ 62	36 ~ 70	50 ~ 85	60 ~ 100
Operating range	°C	-7 ~ 43°C
Power supply		220-240V / 1Ph / 50-60Hz
Water heat exchanger		Spiral titanium tube in PVC
Refrigerant		R32
Casing		ABS + Galvanized steel
Compressor		Inverter compressor
Max. power input	KW	1.59	2	2.2	3.3	4	6.8
Max. current input	A	7	9	10.6	15	17.5	21.2
Power cord	mm²	3×1.5	3×1.5	3×2.5	3×2.5	3×4.0	3×4.0
Noise at 1m	dB(A)	43 ~ 53	43 ~ 53	45 ~ 55	45 ~ 57	47 ~ 59	47 ~ 59
Noise at 10m	dB(A)	25 ~ 36	25 ~ 36	25 ~ 38	28 ~ 40	30 ~ 42	30 ~ 44
Water flow	m³/h	2 ~ 4	3 ~ 5	4 ~ 6	6 ~ 8	7 ~ 10	10 ~ 12
Water connection	mm	50
Refrigerant weight	g	430	650	770	1200	1400	1600
Net weight	kg	40	42	44	51	61.5	70
Gross weight	kg	48	50	51	60	70	79.5
Net dimensions (L×W×H)	mm	891×370×665	891×370×665	891×370×665	981×370×665	981×440×765	981×440×765
Package dimensions	mm	936×385×695	936×385×695	936×385×695	1026×385×695	1026×455×800	1026×455×800
Qty per 20FT / 40HQ	sets	102 / 216	1022/ 216	102 / 216	90 / 198	50 / 165	50 / 165

Remarks:

The above data will be subject to change without further notice, please refer to the nameplate on the unit.

Advised pool volume applies to a private pool with an isothermal cover, from April to September.
