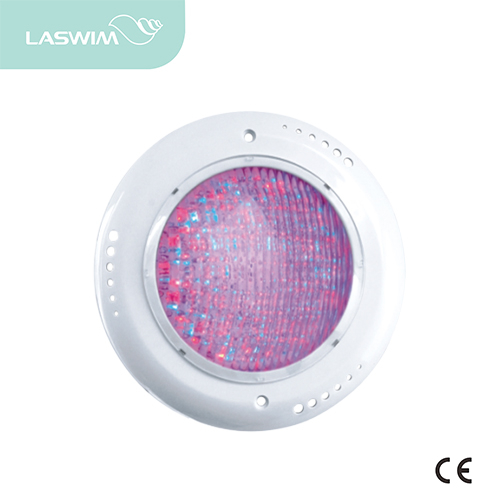

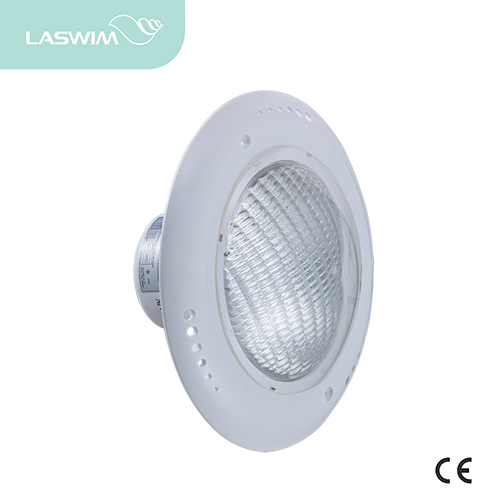

WL-QJ Series Underwater Light

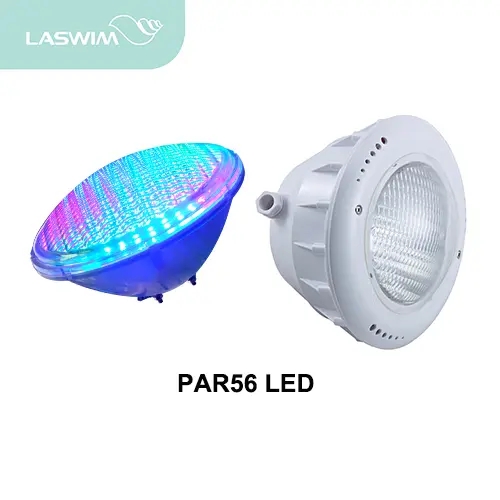

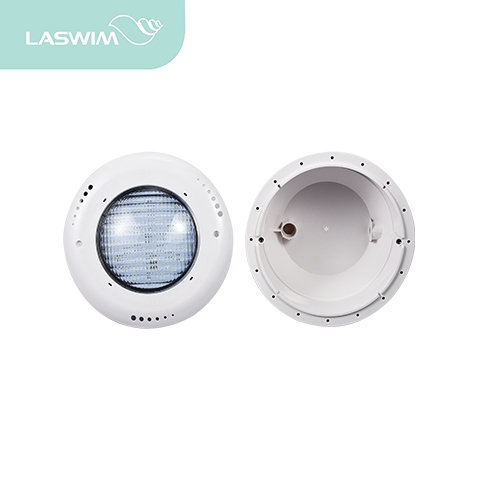

Laswim QJ series light adopts international standard PAR56 lamp and corrosive resistant plastic niche. High quality silicon gasket, it’s not easy to age, seepage and leak to ensure waterproofness. QJ models feature different high power lamp sources: variable voltage led lamp, DIP led lamp, SMD led lamp and halogen PAR56 bulb.

Suitable to concrete pool, fiberglass pool, vinyl pool, stainless steel pool, wooden pool, and liner pool.

Features

Detail

DIP LED features:

·Good sealing, non-corrosive

·Life span: 10,000-100,000 hours

·Safe low voltage: AC12V

·Beam angle: 120°

·Standard cable: 2.0 meters

·Waterproof standard: IP68

·Housing type installation mode: compatible to concrete pool, fiberglass pool, stainless steel pool, liner pool

·19 working modes

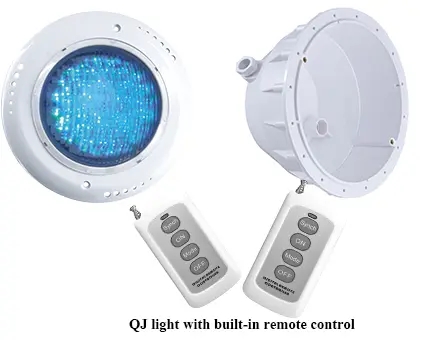

·Laswim remote control system (YAQ) allows you to manage your pool with an easygoing, relaxing lifestyle

Wide voltage led advantages:

·Safe low voltage: AC12V-20V

·Can be applied to the voltage fluctuation range of occasion

·No flicker, high purity, soft light, no glare

·High brightness (high lumen), strong light transmission

·Low power consumption, low heat while working

·Housing type installation mode: compatible to concrete pool, fiberglass pool, stainless steel pool, liner pool

SMD led benefits:

·High efficient SMD led, power saving up to 80% consumption than halogen lamp and incandescent lamp

·High quality silicon gasket, it's not easy to age, seepage and leak

·Super high brightness, low maintenance cost

·Housing type installation mode: compatible to concrete pool, fiberglass pool, stainless steel pool, liner pool

·Safe low voltage: AC12V

Resource

Specification
Manual

Model	Description	Power(w)	Voltage(V)	Lumination (LUx)	Installation mode
WL-QJ-LED216HTB	Wide voltage LED with niche, 216 leds, for concrete pool / fiberglass pool / liner pool compatible, cool white/warm white	24W	12-20V	1420 (cool/warm white)	Housing type
WL-QJ-LED216HTC	Wide voltage LED with niche, 216 leds, for concrete pool / fiberglass pool / liner pool compatible, RGB color	24W	12-20V	522(RGB)	Housing type
WL-QJ-LED144	Underwater light with niche, 144 leds for concrete pool / fiberglass pool / liner pool compatible, white/RGB	12W	12V	302 (cool/warm white)168(RGB color)	Housing type
WL-QJ-LED252	Underwater light with niche, 252 leds for concrete pool / fiberglass pool / liner pool compatible, white/RGB	18W	12V	530 (cool/warm white)257 (RGB color)	Housing type
WL-QJ-LED036	Underwater light with niche, 36 leds high power, for concrete pool / fiberglass pool / liner pool compatible, white/RGB	36W	12V	1395 (cool/warm white)410(RGB color)	Housing type
WL-QJ-LED018JTB	Underwater light with niche, 54 leds for concrete pool / fiberglass pool / liner pool compatible, cool white/warm white	18W	12V	1285 (cool/warm white)	Housing type
WL-QJ-LED018JTC	Underwater light with niche, 54 leds for concrete pool / fiberglass pool / liner pool compatible, RGB color	18W	12V	245 (RGB color)	Housing type
WL-QJ-LED024JTB	Underwater light with niche, 72 leds for concrete pool / fiberglass pool / liner pool compatible, cool white/warm white	24W	12V	1240 (cool/warm white)	Housing type
WL-QJ-LED024JTC	Underwater light with niche, 72 leds for concrete pool / fiberglass pool / liner pool compatible, RGB color	24W	12V	375 (RGB color)	Housing type
WL-QJP300	Underwater light with niche, PAR56 halogen bulb, for concrete pool / fiberglass pool	300W	12V		Housing type
