LAKP Series Pump

Featuring a sleek, unique deign, the LAKP series high-performance pump combines reinforced engineering plastic housing with Stainless Steel reinforced ports for extra strength. Equipped with a 3.2L large basket for easy maintenance and self- priming capability (max. 2.5m suction).

With AC-structure bearings to minimize noise, it delivers long-lasting, whisper-quite operation and perfect for spas,commercial pools, and water parks.

Features

Self-priming up to 2.5m

Protection standard:IP55

Insulation class: F

Liquid temperature:0-75℃(0~167℉)

Ambient temperature:≤50℃(122℉)

Max. Working pressure: 10.0bar

Detail

Resource

Specification
Manual

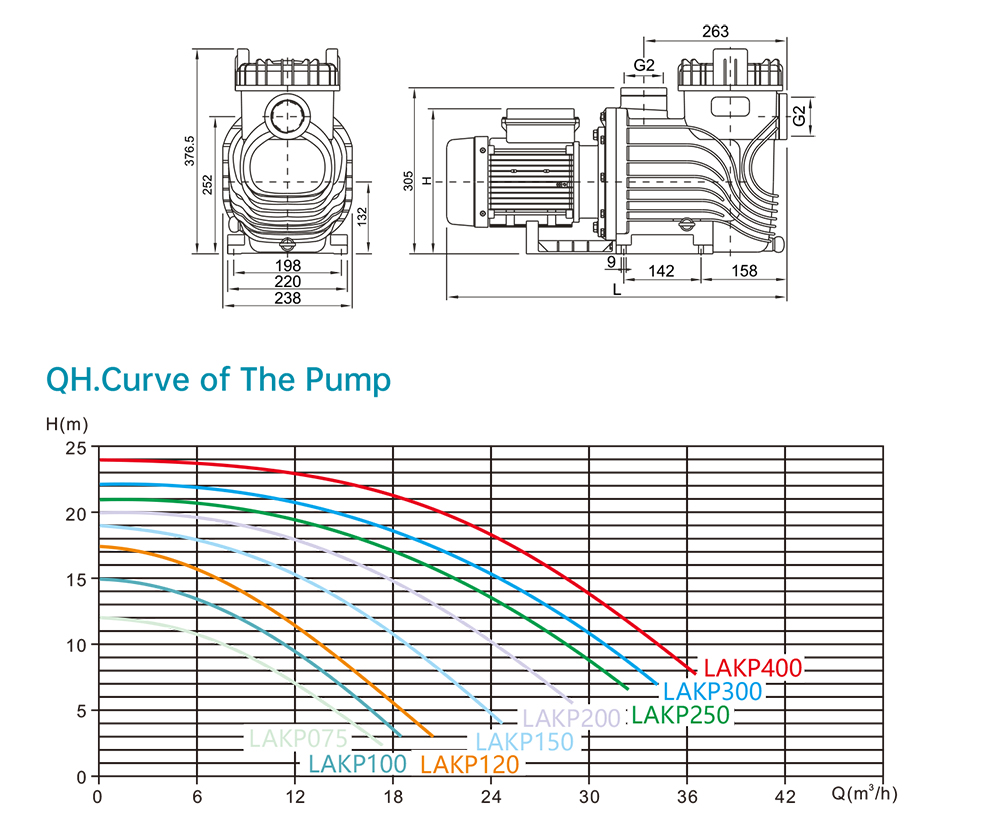

Model	Q-Max(m³/h)	H-max(m)	Rated power supply	Input power		Current(A)	Length(mm)	Height(mm)	Connection size	Weight(kg)	Packing Size(mm)
Model	Q-Max(m³/h)	H-max(m)	Rated power supply	kW	HP	Current(A)	Length(mm)	Height(mm)	Connection size	Weight(kg)	Packing Size(mm)
WL-LAKP075M/T	17.4	12	M:220V/50Hz T:380V/50Hz	0.55	0.75	3.2	575	238	1.5"or 50mm	16	615270440
WL-LAKP100M/T	18.6	15		0.75	1.0	3.8	575	238	1.5"or 50mm	16.5	615270440
WL-LAKP120M/T	20.4	17.5		0.9	1.2	4.6	575	238	1.5"or 50mm	17	615270440
WL-LAKP150M/T	24.6	19		1.1	1.5	5.2	594.5	243	1.5"or 50mm	19	635270440
WL-LAKP200M/T	28.8	20		1.5	2.0	7.0	594.5	246	1.5"or 50mm	20.3	635270440
WL-LAKP250M/T	32.4	21		1.85	2.5	8.6	594.5	258	1.5"or 50mm	22.4	635270440
WL-LAKP300M/T	34.2	22		2.2	3.0	10	594.5	258	1.5"or 50mm	22.4	635270440
WL-LAKP400M/T	36.6	24		3.0	4.0	14	626	267	1.5"or 50mm	26.2	635270440
