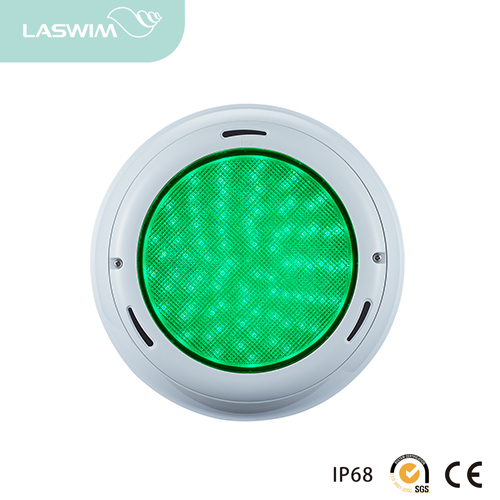

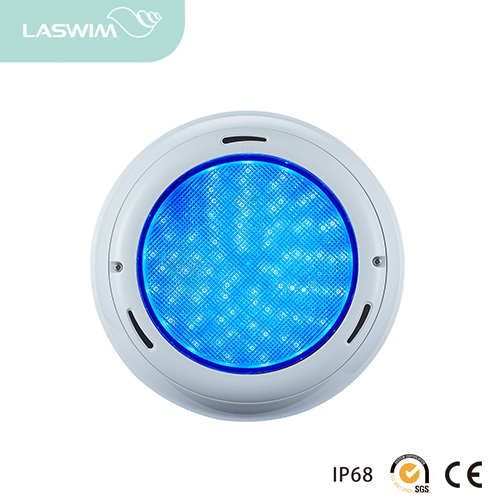

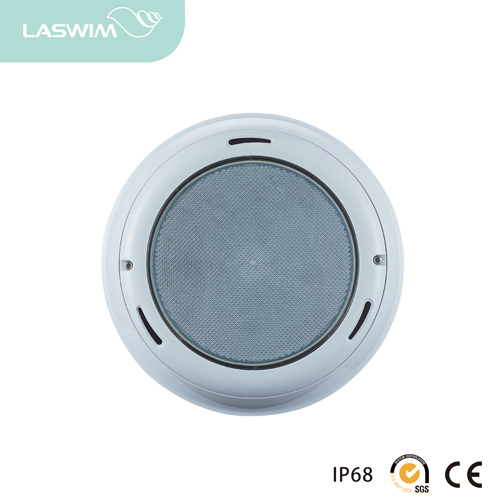

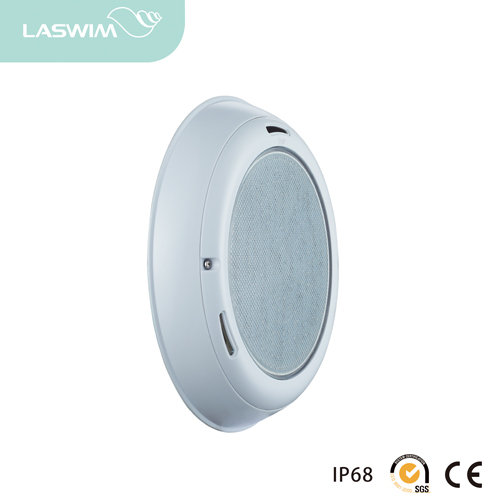

WL-MAG Series Underwater Light

LASWIM's WL-MAG, WL-MBG,and WL-MCG series of mixed-type (wall-mounted/embedded) underwater lights prioritize engineering convenience, product safety, and reliability. This underwater light demonstrates excellent engineering adaptability,allowing wall-mounted, embedded, or assembled installation through the conversion of the base. This greatly enhances the universality of underwater light installation, reducing the difficulty for owners to choose. Simultaneously, this underwater light employs a fully sealed process and integrated structural design, isolating electrical components from water and the light body. This significantly improves the waterproof, heat dissipation, and insulation performance of the underwater light, resulting in better safety and a longer lifespan.


Features

- Fully resin enclosing the light cable connection, to achieve complete waterproof and moisture proof.

High efficient, supper bright, low heat LED board and control board, low power consumption

IP68 waterproof standard.

2.0meters cable length as standard

Cool white, warm white, RGB, single color are available

RGB mode features 19 pre-programmed patterns

Applicable in concrete pool with niche and wall mount with bracket, both installation are compatible

Color temperature: cool white 6000K, warm white: 3000K


See more

Detail

Resource

  • Specification
  • Manual

WL-MAG.1

Model

Power(w)

Voltage(V)

LED  QTY

Light source

Color

Lumination(lux)

Installation type
WL-MAG-LED072TB61272Resin filledWhite color255Housing type & wall-mounted type
WL-MAG-LEDO72TC61272Resin filledRGB color90Housing type & wall-mounted type
WL-MAG-LED144TB1212144Resin filledWhite color455Housing type & wall-mounted type
WL-MAG-LED144TC1212144Resin filledRGB color110Housing type & wall-mounted type
WL-MAG-LED252TB1812252Resin filledWhite color731Housing type & wall-mounted type
WL-MAG-LED252TC1812252Resin filledRGB color255Housing type & wall-mounted type
WL-MAG-LED324TB2412324Resin filledWhite color1075Housing type & wall-mounted type
WL-MAG-LED324TC2412324Resin filledRGB color355Housing type & wall-mounted type


WL-MAG.2

Model

Power(w)

Voltage(V)

LED  QTY

Light source

Color

Lumination(lux)

Installation type
WL-MAG-LED126JTB1812-20V162Resin filledWhite color/Housing type & wall-mounted type
WL-MAG-LED126JTC1812-20V162Resin filledRGB color/Housing type & wall-mounted type
WL-MAG-LED162JTB1812-20V162Resin filledWhite color/Housing type & wall-mounted type
WL-MAG-LED162JTC1812-20V162Resin filledRGB color/Housing type & wall-mounted type
WL-MAG-LED216JTB2412-20V216Resin filledWhite color/Housing type & wall-mounted type
WL-MAG-LED216JTC2412-20V216Resin filledRGB color/Housing type & wall-mounted type
WL-MAG.2-LED162JTB1812-20V162High brightnessWhite color/Housing type & wall-mounted type
WL-MAG.2-LED162JTC1812-20V162High brightnessRGB color/Housing type & wall-mounted type
WL-MAG.2-LED216JTB2412-20V216High brightnessWhite color/Housing type & wall-mounted type
WL-MAG.2-LED216JTC2412-20V216High brightnessRGB color/Housing type & wall-mounted type
