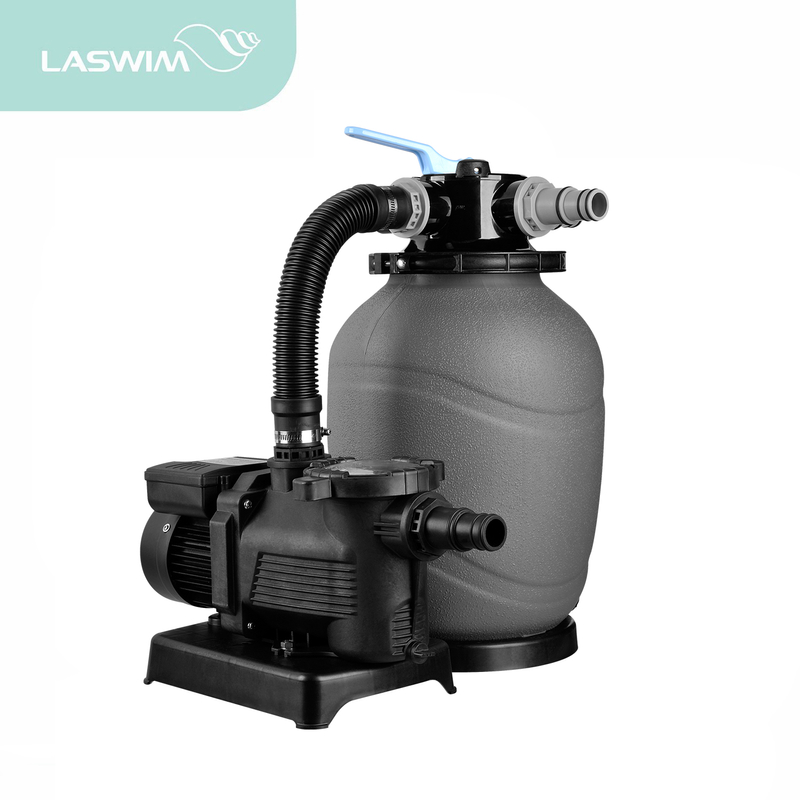

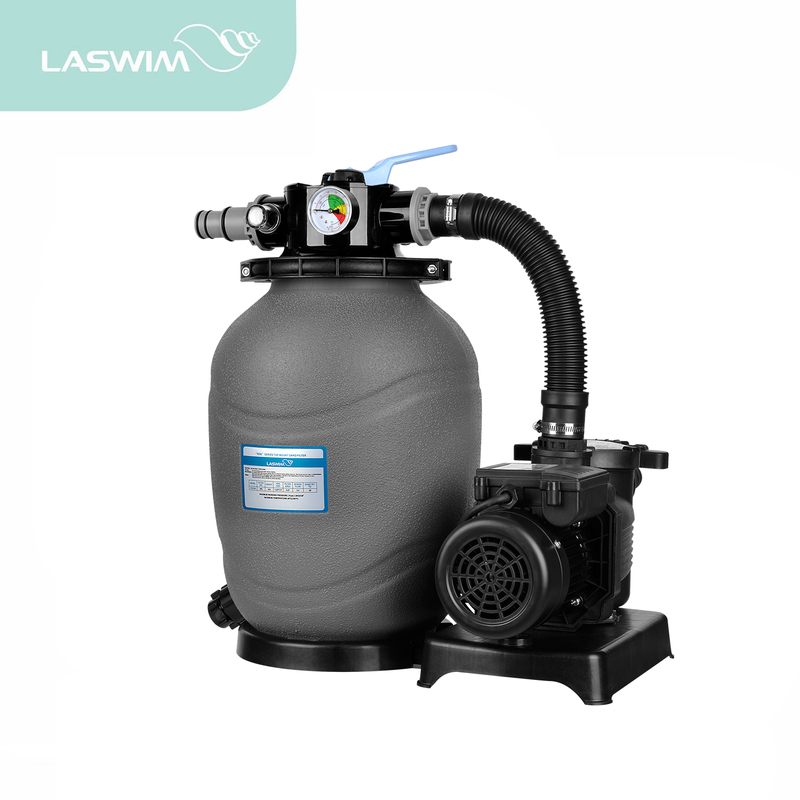

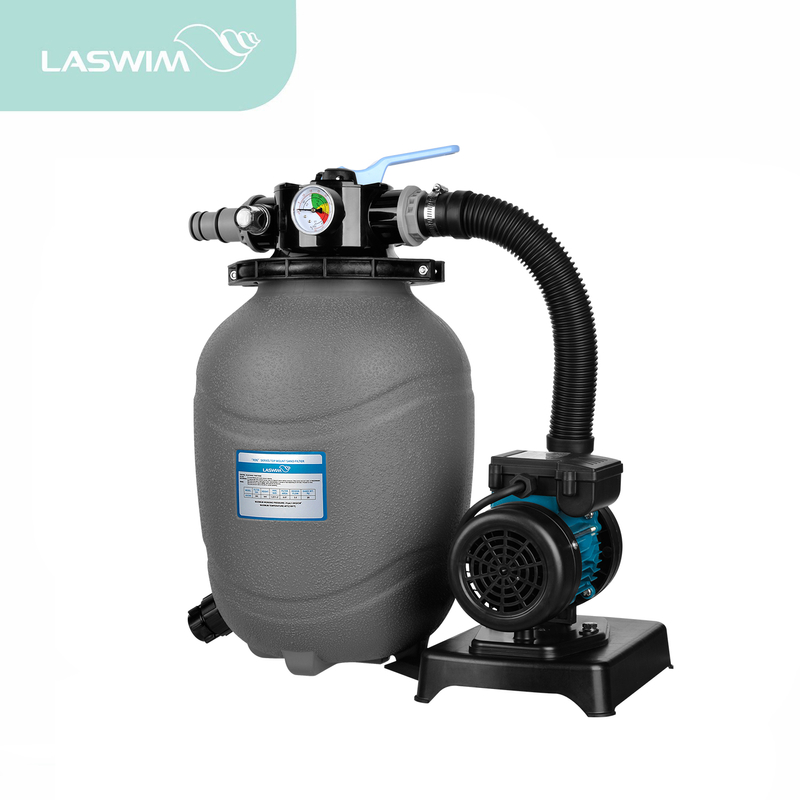

RDG300 Series Sand Filter System

RDG300 series filtration system is specially designed for domestic swimming pool. The component design is easy to assemble, and the installation is simple to operate. A variety of connection sizes can meet different usage scenarios. The RDG300K is equipped with strainer basket , while the RDG300X is not, so you will have more choices.

Features

- Simple installation and easy operation

- The sand filter and the water pump are precisely matched, so that the performance of the unit is optimal and efficient

- The combined base can meet the requirements of different scenarios

- Unitized thermal plastic filter tank, tough, durable and suitable for many different weather conditions.

- Pump built-in heat protector makes the service life longer

- The pump meets F insulation class and IPX5 protection requirement

- The pump has good sealing and anti-corrosion performance, and runs extremely quiet

- A variety of connection sizes, suitable for 32/38mm flexible hose, 1.5"/50mm pipe

- The whole unit includes hoses and other necessary accessorie

Detail

Resource

Specification
Manual

Model	Filter size	Pump Power (HP)	Filter Area (㎡)	Flow rate ㎥/h	Flow rate Ipm	Pump flow rate ㎥/h	Pump flow rate Ipm	Sand weight 0.5- 0.8mm (kg)	Multiport valve	Pipe connection
RDG300K	12″	0.33	0.073	3.65	60.8	6.5	108.33	20	4-way	32/38mm flexible hose1.5″/50mm pipe
RDG300X	12″	0.25	0.073	3.65	60.8	8.2	136.67	20	4-way	32/38mm flexible hose1.5″/50mm pipe

Model

Filter

size

Pump Power

(HP)

Filter Area

(㎡)

Flow rate

㎥/h

Flow rate

Ipm

Pump flow rate

㎥/h

Pump flow rate

Ipm

Sand weight 0.5-

0.8mm (kg)

Multiport

valve

Pipe connection

RDG300K

12″

0.33

0.073

3.65

60.8

6.5

108.33

4-way

32/38mm flexible hose1.5″/50mm pipe

RDG300X

12″

0.25
