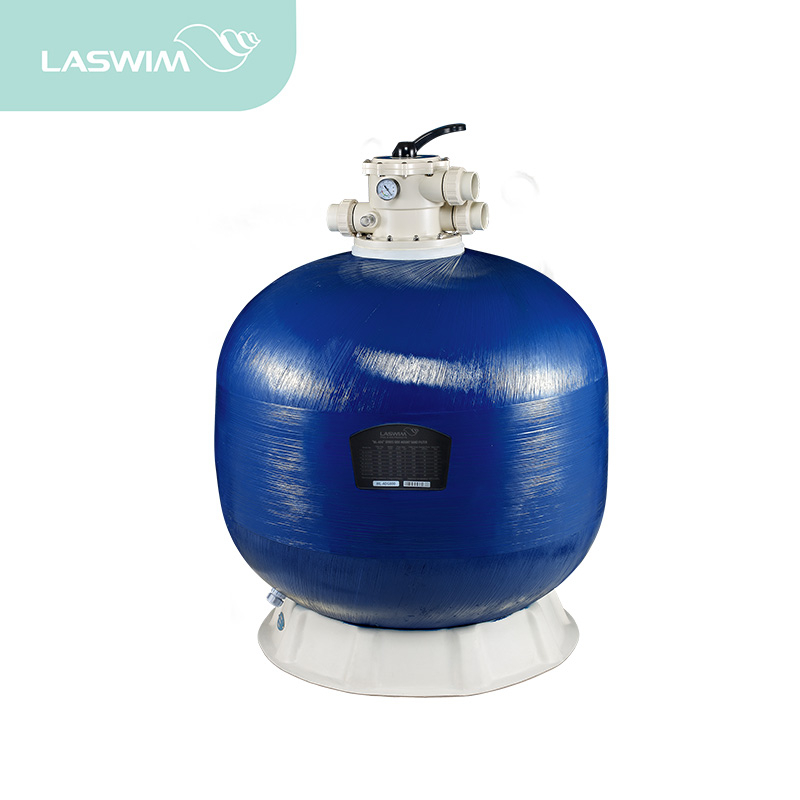

WL-ADG Series Filter

Top mount sand vertical filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive extra-thick fibreglass filament winding, all internal components and connections are injection moded PVC.

Features

- FILTER (Normal filtration and vacuuming).

- BACKWASH (Clean filter by reversing the flow).

- RINSE (Used after backwash to flush dirt from valve).

- WASTE (By-pass filter, used for vacuuming to waste or lowering water level).

- RECIRCULATE (By-passes filter for circulating water to pool).

- CLOSE

Detail

Resource

Specification
Manual

Model	Pipe Size inches	Pipe Size mm	Filter Area (㎡)	Design Flow （m³/h）	Design Flow Ipm	0.5-0.8mm Sand weight (kg)	Tank Volume (㎥)	Valve Volume (㎥)	Tank Diameter(mm)	Filter Height(mm)
WL-ADG350	1.5	50	0.1	4.5	75	25	0.06	0.02	350	750
WL-ADG400	1.5	50	0.13	6.5	108	34	0.09	0.02	410	770
WL-ADG450	1.5	50	0.16	8	133	50	0.15	0.02	450	830
WL-ADG500	1.5	50	0.23	11.5	192	80	0.2	0.02	535	870
WL-ADG650	1.5	50	0.32	16	267	160	0.32	0.02	635	970
WL-ADG700	1.5	50	0.4	20	333	220	0.42	0.02	710	1040
WL-ADG750	2	63	0.44	22	367	230	0.44	0.03	750	1120
WL-ADG800	2	63	0.5	25	417	260	0.68	0.03	800	1130
WL-ADG900	2	63	0.64	30	533	400	0.95	0.03	900	1270
WL-ADG1000	2	63	0.79	35	645	600	1.29	0.03	1000	1340
WL-ADG1100	2	63	0.95	44	716	800	1.4	0.03	1100	1460
WL-ADG1200	2	63	1.13	50	850	920	2.26	0.03	1200	1540
WL-ADG1400	2	63	1.53	68	1133	1400	3.5	0.03	1400	1750

STANDARD: MAXIMUM WORKING PRESSURE: 36psi/2.5kg/c㎡
MAXIMUM OPERATING WATER TEMPERATURE≤50ºC
MAXIMUM TESTING PRESSURE:58psi/4.0kg/c㎡

OPTIONAL: MAXIMUM WORKING PRESSURE: 58psi/4.0kg/c㎡ (WL-ADG750-1400)
MAXIMUM OPERATING WATER TEMPERATURE≤50ºC
MAXIMUM TESTING PRESSURE:86psi/6.0kg/c㎡
