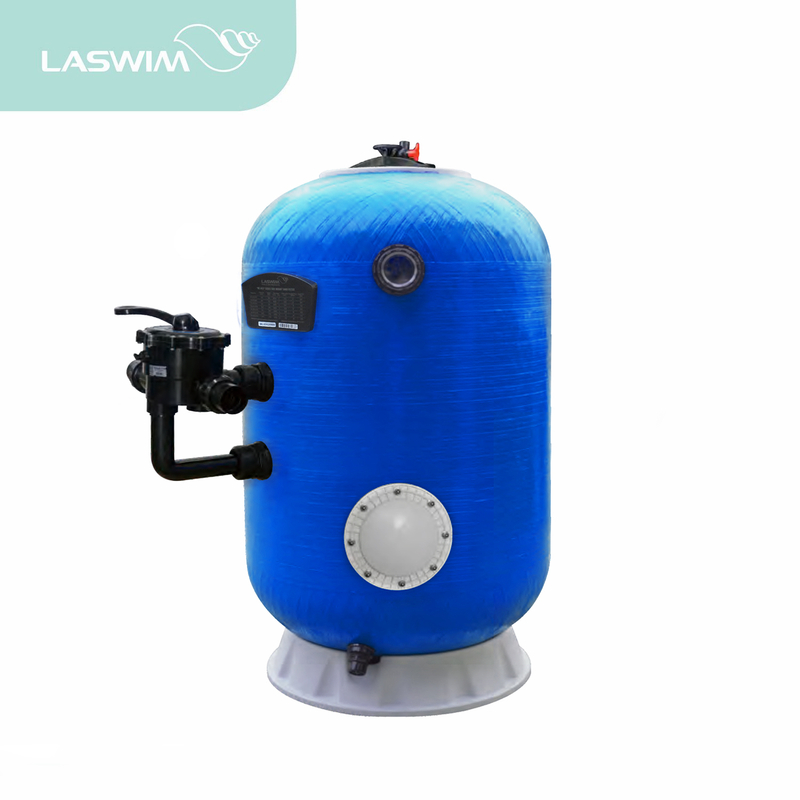

WL-ECG Series Filter

Depth Sand Filters are made of high quality fibre glass which is chemical and sunlight resistance, and can be installed out-of -doors. Side Mount , easy for operating. It also can be feeded and mixed different filtrate medium (such as : Zeolite, Sand and Active carbon) to make the water more clear. It is the best choice for residential area and public water.

Features

This filter can be with flange or valve
With Manhole, Slight glass, Collector arm.
Optional: Nozzle plate.

Detail

Resource

Specification
Manual

With Valve

Model	Pipe Size inches	Pipe Size mm	Filter Area (㎡)	Design Flow ㎥/h	Design Flow Ipm	Sand Weight 0.5-0.8mm (kg)	Grave Weight 1-2mm (kg)	Tank Diameter (mm)	Tank Height (mm)
WL-ECG15800V	2	63	0.5	20	333	455	170	800	1600
WL-ECG15900V	2	63	0.64	25.6	426	585	230	900	1600
WL-ECG151000V	2	63	0.79	61.6	526	720	720	1000	1600
WL-ECG151200V	2	63	1.13	40	666	1030	1030	1200	1600
WL-ECG151200V-2.5	2.5	75	1.13	45.2	753	1030	1030	1200	1600
WL-ECG20800V	2	63	0.5	15	250	770	770	800	2100
WL-ECG20900V	2	63	0.64	19	317	990	990	900	2100
WL-ECG201000V	2	63	0.79	23.7	395	1220	1220	1000	2100
WL-ECG201200V	2	63	1.13	30	500	1740	1740	1200	2100
WL-ECG201200V-2.5	2.5	75	1.13	33.9	565	1740	1740	1200	2100

With Flange

Model	Pipe Size inches	Pipe Size mm	Filter Area (m²)	Design Flow m³/h	Design Flow Ipm	Sand Weight 0.5-0.8mm (kg)	Grave Weight 1-2mm (kg)	Tank Diameter (mm)	Tank Height (mm)
WL-ECG15800F	2	63	0.5	20	333	455	170	800	1600
WL-ECG15900F	2	63	0.64	25.6	426	585	230	900	1600
WL-ECG151000F	2	63	0.79	31.6	526	720	270	1000	1600
WL-ECG151200F	3	90	1.13	45.2	666	1030	450	1200	1600
WL-ECG151400F	3	90	1.54	61.6	753	1030	450	1400	1600
WL-ECG20800F	2	63	0.5	15	250	770	170	800	2100
WL-ECG20900F	2	63	0.64	19	317	990	230	900	2100
WL-ECG201000F	2	63	0.79	23.7	395	1220	270	1000	2100
WL-ECG201200F	3	90	1.13	33.9	500	1740	450	1200	2100
WL-ECG201400F	3	90	1.54	46.2	565	2100	500	1400	2100

With Nozzle

Model	Pipe Size inches	Pipe Size mm	Filter Area (m²)	Design Flow m³/h	Design Flow Ipm	Sand Weight 0.5-0.8mm (kg)	Grave Weight 1-2mm (kg)	Tank Diameter (mm)	Tank Height (mm)
WL-ECG15800	2	63	0.5	20	333	455	110	800	1600
WL-ECG15900	2	63	0.64	25.6	426	585	145	900	1600
WL-ECG151000	2	63	0.79	31.6	526	720	175	1000	1600
WL-ECG151200	3	90	1.13	45.2	753	1030	255	1200	1600
WL-ECG151400	3	90	1.54	61.6	1026	1100	320	1400	1600
WL-ECG20800	2	63	0.5	15	250	770	110	800	2100
WL-ECG20900	2	63	0.64	19	317	990	145	900	2100
WL-ECG201000	2	63	0.79	23.7	395	1220	175	1000	2100
WL-ECG201200	3	90	1.13	33.9	565	1740	255	1400	2100
WL-ECG201400	3	90	1.54	46.2	770	2100	320	1200	2100

STANDARD:

MAXIMUM WORKING PRESSURE: 36psi/2.5kg/c㎡
MAXIMUM OPERATING WATER TEMPERATURE≤50ºC
MAXIMUM TESTING PRESSURE:58psi/4.0kg/c㎡

OPTIONAL:
MAXIMUM WORKING PRESSURE: 58psi/4.0kg/c㎡
MAXIMUM OPERATING WATER TEMPERATURE≤50ºC
MAXIMUM TESTING PRESSURE:86psi/6.0kg/c㎡
