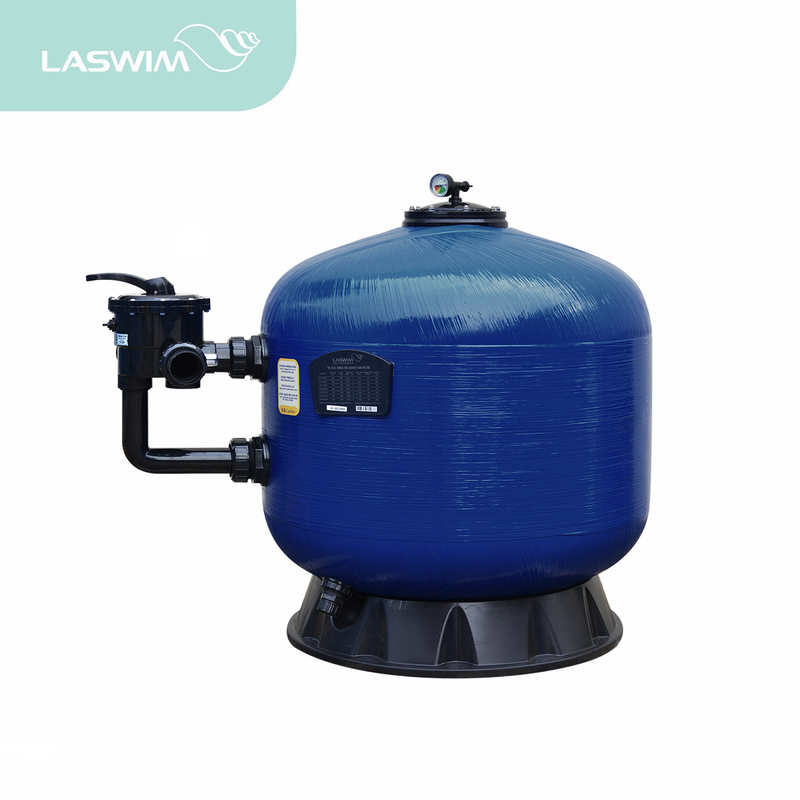

WL-BCG Series Filter

Side mount sand filter are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive fireglass filament winding, all internal components and connections are injection molded PC.

Features

Detail

Resource

Specification
Manual

Model	Pipe Size inches	Pipe Size mm	Filter Area (㎡)	Design Flow (㎥/h)	Design Flow Ipm	0.5-0.8mm Sand Weight (kg)	Tank Volume (㎥)	Valve Volume (㎥)	Tank Diameter (mm)	Tank Height (mm)
WL-BCG450	1.5	50	0.16	8	133	50	0.15	0.02	450	670
WL-BCG500	1.5	50	0.23	11.5	192	80	0.20	0.02	535	710
WL-BCG650	1.5	50	0.32	16	267	160	0.32	0.02	635	810
WL-BCG700	1.5	50	0.40	20	333	220	0.42	0.02	710	880
WL-BCG750	2	63	0.44	22	367	230	0.44	0.02	750	980
WL-BCG800	2	63	0.5	25	417	260	0.68	0.02	800	1010
WL-BCG900	2	63	0.64	30	533	400	0.92	0.02	900	1100
WL-BCG1000	2	63	0.79	35	645	600	1.48	0.02	1000	1160
WL-BCG1100	2	63	0.95	44	716	80	1.98	0.02	1100	1260
WL-BCG1200	2	63	1.13	50	850	920	2.42	0.02	1200	1340
WL-BCG1400	2	63	1.53	68	1133	1400	3.26	0.02	1400	1570

STANDARO:

MAXIMUM WORKING PRESSURE:36psi/2.5kg/cm2

MAXIMUM OPERATING WATER TEMPERATURE≤50ºC

OPTIONAL:

MAXIMUM WORKING PRESSURE:58psi/4.0kg/cmm2(WL-BCG800-1400)

MAXIMUM OPERATING WATER TEMPERATURE≤50ºC

MAXIMUM TESTING PRESSURE 86psi/6.0kg/cmm2
