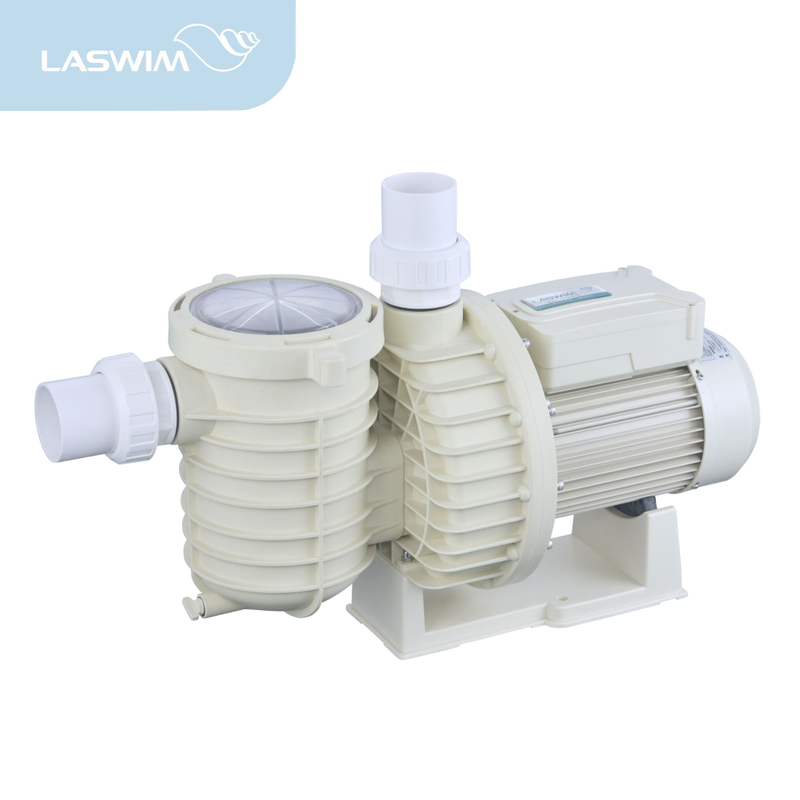

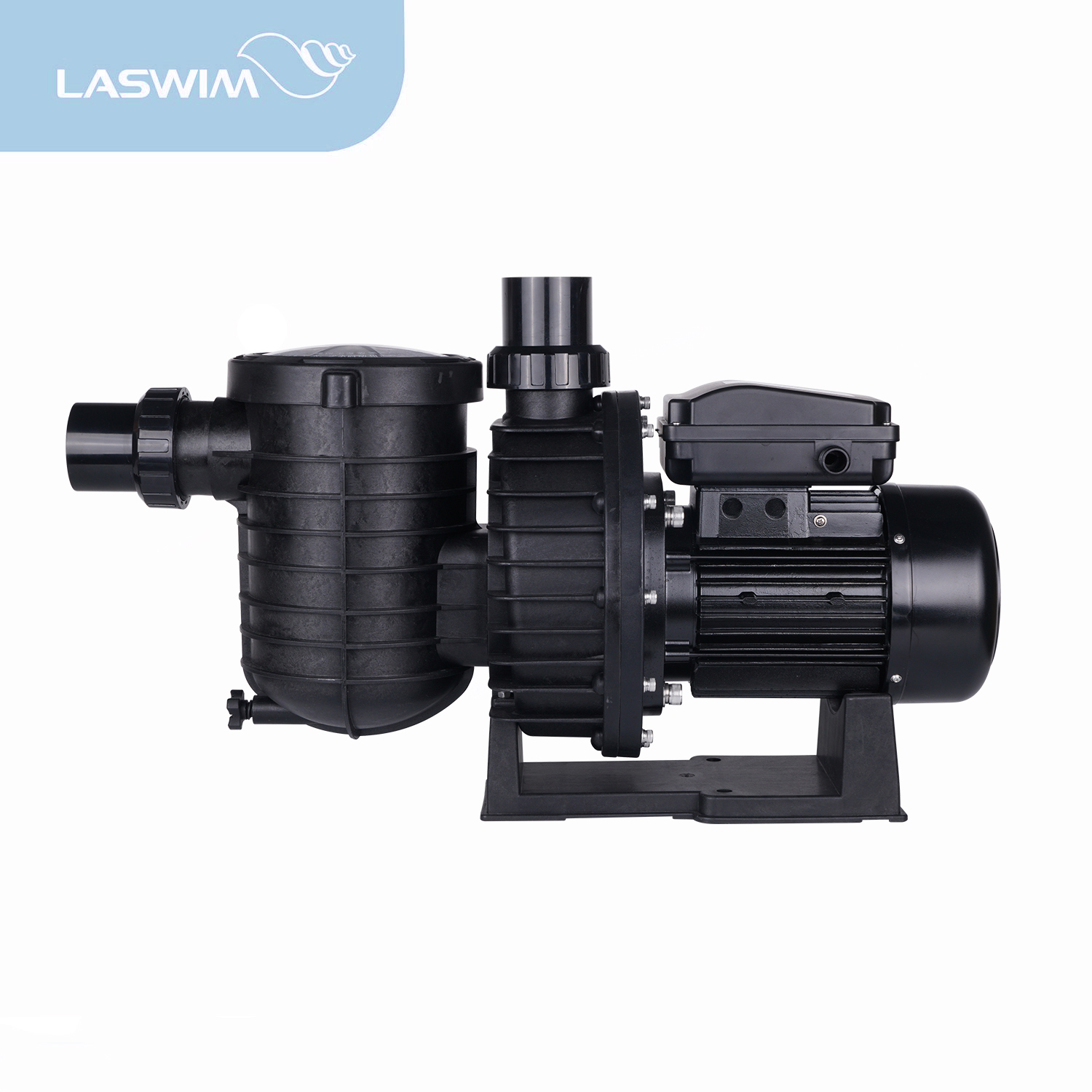

BHP/BHP-E Series Pumps

BHP/BHP-E heavy duty pumps delivers high flow and high performance. It is designed for commerical swimming pool. Unique large diffuser and maximum performance imperller with high-performance motor maximize energy efficiency.

Features

- The inlet or outlet of the pump with an external thread which can connect with metric or imperial pipes.

- The pump has excellent performance and reliable quality, which can bear 25000 times of impact test.

- Liquid Temperature:5-50℃（41-122℉）

- Ambient Temperature: up to 40℃（104℉）

- Maximum working pressure: 2.5bar

- IPX5 waterproof standard

- Class I protection against electric shock.

- Thermal protection included.

- Motor: 3000r.p.m.

- 50Hz or 60Hz is available for different necessities

Detail

1.Pump housing: Polypropylene 35%+35% fiberglass

2.Filter basket: Polypropylene

3.Shaft: SS304

SS316 (For Seawater pump BHP-E series)

4.Bearing: NSK

5.Mechanical seal: Carbon+Resin-Ceramics (Carbon, Ceramics, SS304, EPDM)

SS316+EPDM(Seals bellows)+SIC+Graphite( For Seawater pump BHP-E series)

6.Impeller: Noryl+30% Fiberglass

7.Diffuser: Noryl+30% Fiberglass

8.Pump base: PP+35% Fiberglass

Resource

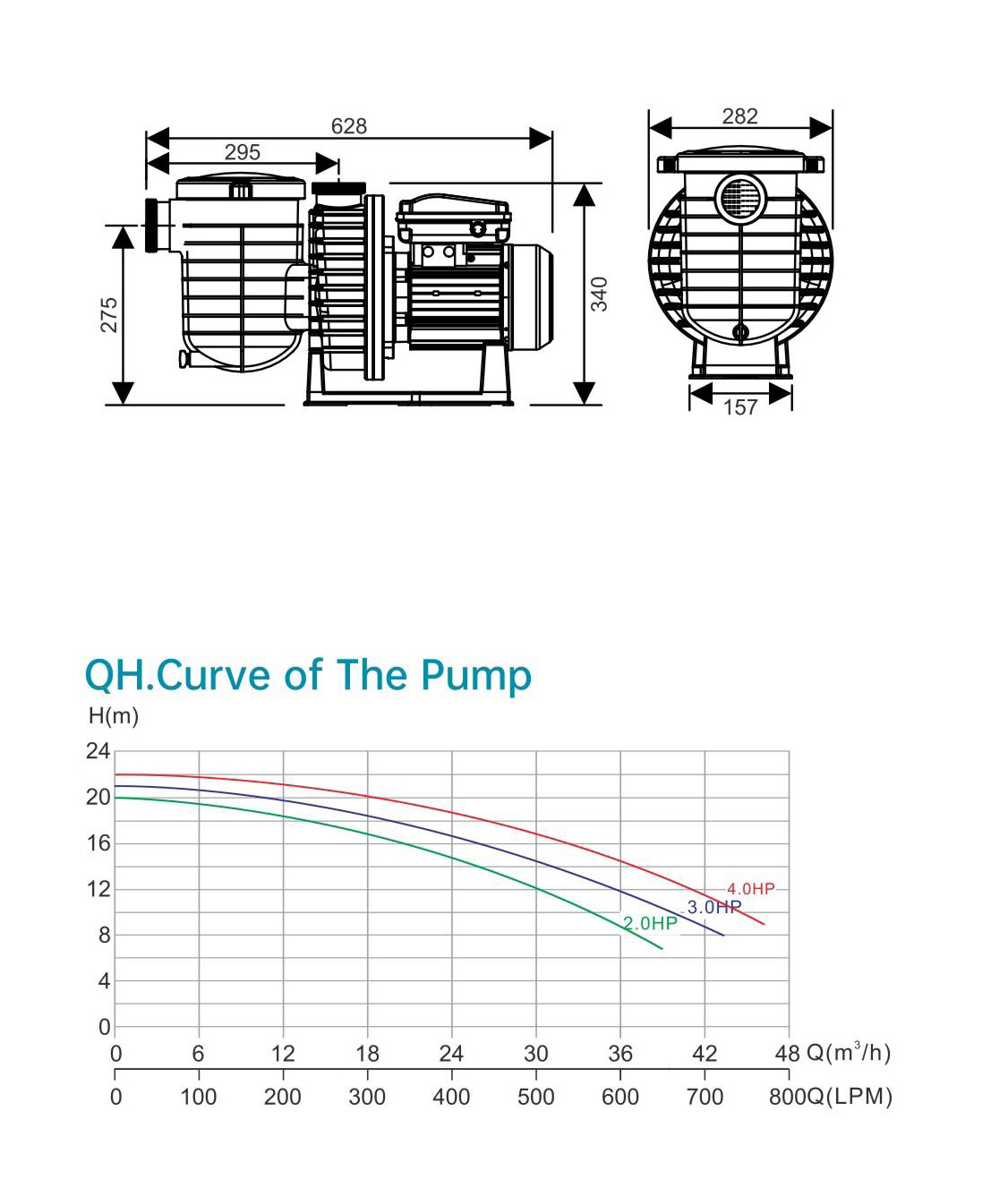

Specification
Manual

Model	Q-max(m³/h)	H-max(m)	Horsepower(HP)	Rated Power(Kw)	Phase	Voltage(V)	Connection size
WL-BHP200M WL-BHP-E200M	38	20	2.0	1.5	1	220	2″63mm
WL-BHP300M WL-BHP-E300M	42	21	3.0	2.2	1	220	2″63mm
WL-BHP200T WL-BHP-E200T	38	20	2.0	1.5	3	380	2″63mm
WL-BHP300T WL-BHP-E300T	42	21	3.0	2.2	3	380	2″63mm
WL-BHP400T WL-BHP-E400T	45	22	4.0	3.0	3	380	2″63mm
