WL-KP Series Domestic Pool Circulation Pump | For Small Residential Swimming Pools

Share to:

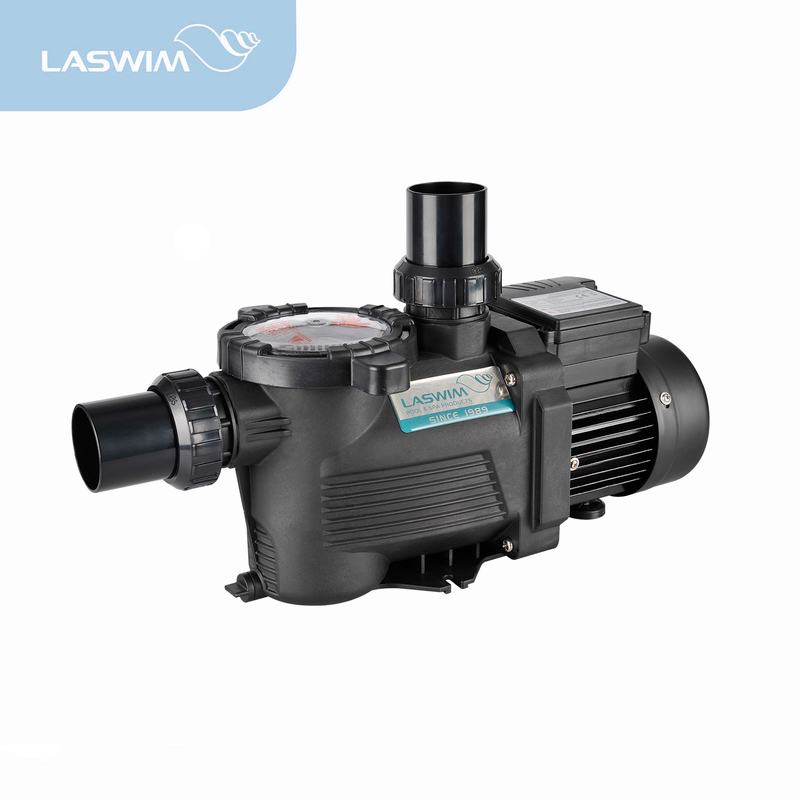

KP Series Pump

WL-KP series are used for water circulation in all kinds of small domestic swimming pools.Slightly dirty water with solids in suspension can be perfectly filtered.

Features

- Liquid temperature: 5-50ºC（41-122℉）

- Ambient temperature: up to 40ºC（104℉）

- Max. Working pressure: 3.0 bar

- IPX5 waterproof standard

- Insulation Class: F

- Thermal protection included

- Single phase: 220V/50Hz

- 220V/60Hz, 110/60Hz; 380V/50Hz(P≥450W) are available on request

- Max.Suction:3M(P≥600W)

Detail

Resource

Specification
Manual

Model	Q-max (㎥/h)	H-max (m)	Horsepower (HP)	Rated Power (KW)	Phase	Voltage (v)	Connection Size
WL-KP256	7.5	7	0.33	0.25	1	220	1.5″or 50mm
WL-KP306	7.5	8.5	0.4	0.3	1	220	1.5″or 50mm
WL-KP356	9.6	9.5	0.5	0.35	1	220	1.5″or 50mm
WL-KP456	11.1	10	0.6	0.45	1	220	1.5″or 50mm
WL-KP556	14.1	12	0.75	0.55	1	220	1.5″or 50mm
WL-KP756	15.6	12.5	1.0	0.75	1	220	1.5″or 50mm
WL-KP856	16.5	12.5	1.2	0.85	1	220	1.5″or 50mm
WL-KP1106	22.5	16	1.5	1.10	1	220	48.5mm & 50mm or 60.3mm & 63mm
WL-KP1606	27.9	18	2.0	1.60	1	220	48.5mm & 50mm or 60.3mm & 63mm
WL-KP2206	30.9	19.5	3.0	2.20	1	220	48.5mm & 50mm or 60.3mm & 63mm
