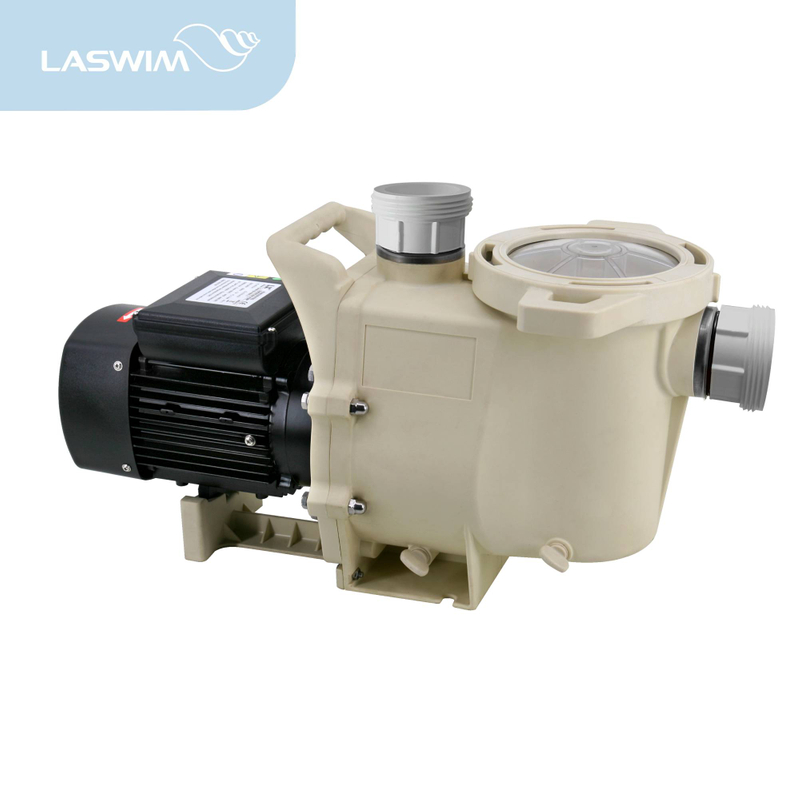

SWPB Series Pump

SWPB series pump is designed for the market that likes to use American pump.

Features

- Inlet and outlet be reinforced by a stainless steel ring

- Integral structure handle, convenient installation

- Thermal protector: single phase

- Insulation：F

- Protection：IP55

- Max suction: 3m

- Liquid Temperature: 5-50℃（41-122℉）

- Ambient temperature: up to 50℃（122℉）

- Single phase: 220V/50Hz

- 220V/60Hz,380V/50Hz are available on request

Detail

Resource

Model	Q-max (㎥/h)	H-max (m)	Horsepower (HP)	Rated Power (KW)	Phase	Voltage (v)	(Amps)	Connection Size	L Length (mm)	H Height (mm)
WL-SWPB075	17.1	12	0.75	0.55	1	220	3.2	60.3mm or 63mm	572	243
WL-SWPB100	18.9	15	1.0	0.75	1	220	3.8	60.3mm or 63mm	572	243
WL-SWPB120	20..1	17	1.2	0.9	1	220	4.6	60.3mm or 63mm	572	243
WL-SWPB150	24	19	1.5	1.1	1	220	5.4	60.3mm or 63mm	572	243
WL-SWPB200	28.8	21	2.0	1.5	1	220	7.0	60.3mm or 63mm	572	243
WL-SWPB250	31.8	21	2.5	1.85	1	220	8.6	60.3mm or 63mm	572	248
WL-SWPB300	33	22	3.0	2.2	1	220	10	60.3mm or 63mm	585	258
