ECP Series Silent Swimming Pool Centrifugal Pump

Share to:

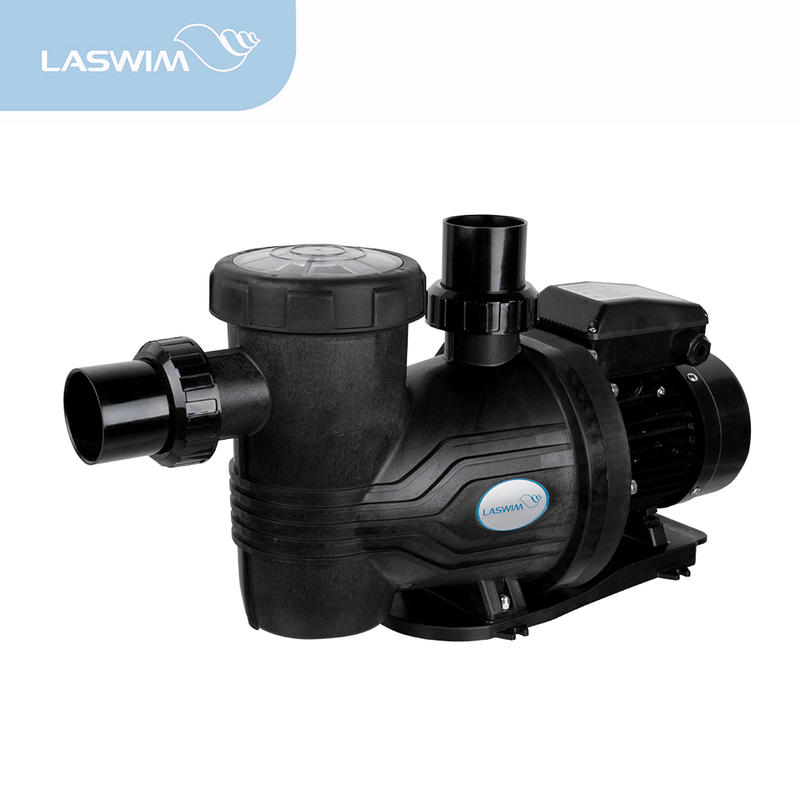

ECP Series Pump

ECP series is a new silent and high-performance swimming pool centrifugal pump, suitable for small and medium-sized water application . With the independently innovative hydraulic structure design, ECP series pool pump improves the efficiency and performance, greatly reduces the vibration and operating noise as well.

Features

- Asynchronous motor

- The innovative design on impeller and diffuser makes the higher pump performance and reduces the vibration and noise

- Protection standard: IP55

- Insulation class: F

- Self-priming up to 3m

- Noise: ≤62dB.

- Built-in thermal protection and overload protection (for single phase pump)

- Standard port size: 2”, 1.5” is optional

- Motor: 2900r.p.m

- Liquid temperature: 5-50℃(41~122℉)

- Ambient temperature: 5-50℃(41~122℉)

- Maximum working pressure: 0.35MPa

Detail

Pump housing: PP+35%GF

Seal plate: PP+35%GF

Diffusor: PPO+30%GF

Impeller: PPO+30%GF+ Copper core

Motor shaft: SS304

Filter basket: PP

Pump base: PP+35%GF

Mechanical seal: stationary face-SIC, rotating face- Graphite, seal bellows-NBR, Spring-316L.

Resource

Specification
Manual

Model	Q-max(㎥/h)	H-max(m)	Flow at 8 m(㎥/h)	Flow at 10 m(㎥/h)	Output HP(HP)	Input rated power (kW)	Voltag(V)	Phase	Connection Size	Noise(dB)
ECP050M	22	11.5	13	8	0.5	0.6	220	1	2″63mm	52.1
ECP075M	24	14	19.5	16.5	0.75	0.8	220	1	2″63mm	54.4
ECP100M	30	15	23.5	21.5	1	1.1	220	1	2″63mm	56.9
ECP150M	35	18	30	27	1.5	1.6	220	1	2″63mm	59.6
ECP200M	36	19	32.5	29.5	2	1.9	220	1	2″63mm	61
ECP075T	24	14	19.5	16.5	0.75	0.8	380	3	2″63mm	54.4
ECP100T	30	15	23.5	21.5	1	1.1	380	3	2″63mm	56.9
ECP150T	35	18	30	27	1.5	1.6	380	3	2″63mm	59.6
ECP200T	36	19	32.5	29.5	2	1.9	380	3	2″63mm	61
