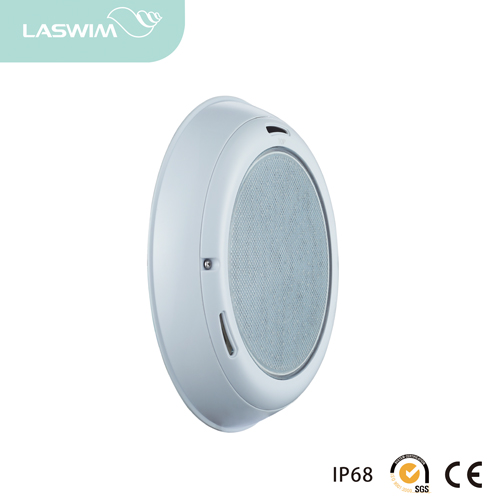

MAG resin filled LED underwater light

Mode: WL-MAG series led underwater light
Power: 6W/12W/18W/24W Safe low voltage AC12V Cool white, warm white, RGB, single color
Housing type installation (with niche) and Wall mount type (with bracket plate) are available
Diameter:
Availability:
Quantity:
  • WL-MAG series
  • Laswim

COLOR



Compatible to be with niche and bracket plate, you’re able to choose recessed or wall mount installation mode much more flexible. MAG/MBG/MCG lights full filled resin allows 100% water proofing with special epoxy, even if only the led panel still keeps working.



With the best technology, the heat radiation is wasted fast when producing brightness, preventing from reducing in attenuation of and extend lamp life.



Features:


  • Fully resin enclosing the light cable connection, to achieve complete waterproof and moisture proof

  • High efficient, supper bright, low heat LED board and control board, low power consumption

  • IP68 waterproof standard.

  • 2.0meters cable length as standard

  • Cool white, warm white, RGB, single color are available

  • RGB mode features 19 pre-programmed patterns

  • Applicable in concrete pool with niche and wall mount with bracket, both installation are compatible

  • Color temperature: cool white 6000K, warm white: 3000K

  • Laswim remote control system (YAQ) allows you to manage the pool with an easygoing, relaxed lifestyle


Specification

WL-MAG.1

Model Power(W) Voltage(V) LED QTY Light source Color Lumination(lux) Installation   type
WL-MAG-LED072TB 6 12 72 Resin filled White color 255 Housing type &   wall-mounted type
WL-MAG-LED072TC 6 12 72 Resin filled RGB color 90 Housing type &   wall-mounted type
WL-MAG-LED144TB 12 12 144 Resin filled White color 455 Housing type &   wall-mounted type
WL-MAG-LED144TC 12 12 144 Resin filled RGB color 110 Housing type &   wall-mounted type
WL-MAG-LED252TB 18 12 252 Resin filled White color 731 Housing type &   wall-mounted type
WL-MAG-LED252TC 18 12 252 Resin filled RGB color 255 Housing type &   wall-mounted type
WL-MAG-LED324TB 24 12 324 Resin filled White color 1075 Housing type &   wall-mounted type
WL-MAG-LED324TC 24 12 324 Resin filled RGB color 355 Housing type &   wall-mounted type


WL-MAG.2

Model Power(W) Voltage(V) LED QTY Light source Color Lumination(lux) Installation   type
WL-MAG-LED126JTB 18 12-20V 162 Resin filled White / Housing type &   wall-mounted type
WL-MAG-LED126JTC 18 12-20V 162 Resin filled RGB / Housing type &   wall-mounted type
WL-MAG-LED162JTB 18 12-20V 162 Resin filled White / Housing type &   wall-mounted type
WL-MAG-LED162JTC 18 12-20V 162 Resin filled RGB / Housing type &   wall-mounted type
WL-MAG-LED216JTB 24 12-20V 216 Resin filled White / Housing type &   wall-mounted type
WL-MAG-LED216JTC 24 12-20V 216 Resin filled RGB / Housing type &   wall-mounted type
WL-MAG.2-LED162JTB 18 12-20V 162 High brightness White / Housing type &   wall-mounted type
WL-MAG.2-LED162JTC 18 12-20V 162 High brightness RGB / Housing type &   wall-mounted type
WL-MAG.2-LED216JTB 24 12-20V 216 High brightness White / Housing type &   wall-mounted type
WL-MAG.2-LED216JTC 24 12-20V 216 High brightness RGB / Housing type &   wall-mounted type


Even if only the led panel still keeps working

resin filled led light



Flat light non-niche, with bracket

MAG-1MAG-12

Concrete pool light with niche

MAG-6MAG-13

MAG-dia


producing process


Standard carton packing:

packing 2packing
