WL-LB/LBS
LASWIM

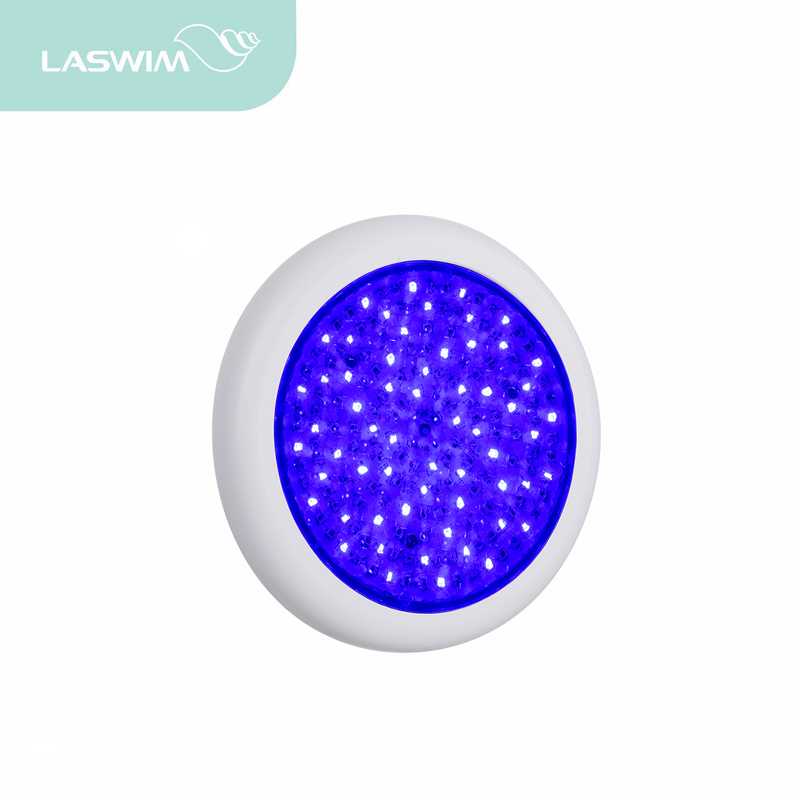

WL-LB/LBS SERIES
COMPATITBLE TO ALL TYPE OF POOLS
Features:
1. Ultra-thin design, perfetly integrated with the pool wall.
2. The 3/4" thread allows you to easily install it into different types of pools.
3. Safety low voltage: 12VAC, DC12-24V.
4. White LED light color rendering index of up to 84, high light eficiency and high light color consistency.
5. Default 9-color mode: It's available to work with normal switch 12Vac, Laswim YAQ control system and Applume APLU-DW control system with wifi 2.4G, 433MHz wireless high frequency technology.
6. Plastic face ring and stainless steel face ring are available.
7. Light beam: 120°.
8. The average LED life span exceeds 50,000 hours.
9. Protection rating: IP68.
10. 3 meters cable
TECHNICAL DATA
| REF | Power | Voltage | Number Of Leds | Luminous Flux | Color Render Index | Light Mode | Operating Temperature Max. |
| WL-LB-LED0O9JTB | 9 WATTS | AC12V/DC12-24V | 117 | 973lm | 84 | WHITE | UP TO 45℃ |
| WL-LB-LED009JTC | 9 WATTS | AC12V | 117 | 500lm | / | RGB | |
| WL-LB-LED012JTB | 12 WATTS | AC12V/DC12-24V | 117 | 1182lm | 84 | WHITE | |
| WL-LB-LED012JTC | 12 WATTS | AC12V | 117 | 600lm | / | RGB | |
| WL-LB-LED018JTB | 18 WATTS | AC12V/DC12-24V | 171 | 1729lm | 84 | WHITE | |
| WL-LB-LED018JTC | 18 WATTS | AC12V | 171 | 900lm | / | RGB | |
| WL-LBS-LED0O9JTB | 9 WATTS | AC12V/DC12-24V | 117 | 973lm | 84 | WHITE | |
| WL-LBS-LED009JTC | 9 WATTS | AC12V | 117 | 500lm | / | RGB | |
| WL-LBS-LED012JTB | 12 WATTS | AC12V/DC12-24V | 117 | 1182lm | 84 | WHITE | |
| WL-LBS-LED012JTC | 12 WATTS | AC12V | 117 | 600lm | / | RGB | |
| WL-LBS-LED018JTB | 18 WATTS | AC12V/DC12-24V | 171 | 1729lm | 84 | WHITE | |
| WL-LBS-LED018JTC | 18 WATTS | AC12V | 171 | 900lm | / | RGB |
