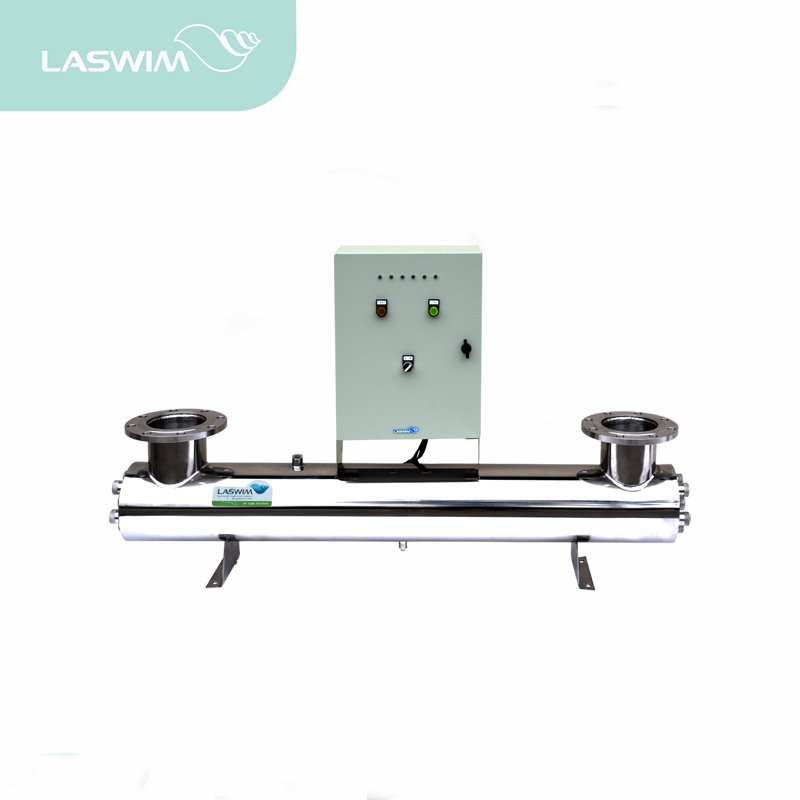

UV Sterilizer Disinfecting Equipment WL-UVC

Availability:
Quantity:
  • WL-UVC

  • LASWIM

UV STERILIZER  DISINFECTING EQUIPMENT
Ultravilot is accepted all over the world as a reliable ,cost-effective and above all environmentally friendly aquarium water disinfection solution.
UV-C radiation destroys the genetic structure of bacteria and Viruses, and inhibits their ability to multiply, rendering them harmless.

Features
*Physical sterilization, no side effects, no secondary pollution.
*Simple, efficient, small occupation.

WL-UVC series full flow ultraviolet disinfectant device uses a special made high power ozone free ultraviolet germicidal lamp. The device is also equipped with a micro carbon austenite stainless steel barrel with a specially processed interior, while the exterior of the barrel is also specially polished. The result of this is the water passing the barrel would be radiated and receive 253.7mm(UVC) of ultraviolet with passing through the barrel, providing a excellent disinfectant effect.

Feature
1.The reactor use 304 polished stainless steel, the smooth interior leaves no blind spot for sterilization.


2.The ultraviolet light tube is equipped with a quartz sleeve, to ensure optimal working temperature.


3.The electrical configuration of the device is suitable to most electrical specifications.


4.Special exterior design makes the device convenient to use.


5.All round sterilization, highly efficient, sterilization rate up to 99.9%.


6.High output, physical sterilization, no side effects, no secondary pollution.


7.The amount of water that can be sterilized ranges from 5.5-250T/H. The device adapts to swimming pools, spa and water parks of various sizes.


UV STERILIZER 5






      ModelPower
 (W)
Rated
Flow
(m³/h)
    Working             Voltage
      (V)
CabinetCabinet Size
LxDxH (mm)
Lamp Power
WxQuantity
Inlet & Outlet
Diameter DN
WL-UVCn-78785.5220V/50Hz304SS930x108x72039Wx2Dn32 screw
WL-UVCn-16016012220V/50Hz304SS930x108x72080Wx2Dn50 screw
WL-UVC-24024020220V/50Hz304SS930x159x78080Wx3Dn65
WL-UVC-32032025220V/50Hz304SS930x159x78080Wx4Dn80
WL-UVC-46546535220V/50Hz304SS1630x219x830155Wx3Dn100
WL-UVC-62062045220V/50Hz304SS1630x219x830155Wx4Dn80 or Dn100
WL-UVC-77577560220V/50Hz304SS1630x219x1080155Wx5Dn150
WL-UVC-93093080220V/50Hz304SS1630x325x1180155Wx6Dn150
WL-UVC-1280128090220V/50Hz304SS1630x325x1180320Wx4Dn150
WL-UVCP-10851085100220V/50Hz304SS1630x325x1180155wx7Dn150
WL-UVCP-13951395125220V/50Hz304SS1630x325x1200155wx9Dn150
WL-UVCP-16001600110220V/50Hz304SS1630x325x1400320Wx5Dn150
WL-UVCP-17051705150220V/50Hz304SS1630x325x1500155wx11Dn200
WL-UVCP-19201920130220V/50Hz304SS1630x325x1500320Wx6Dn150
WL-UVCP-22402240150220V/50Hz304SS1630x377x1500320Wx7Dn150
WL-UVCP-25602560180220V/50Hz304SS1630x377x1500320Wx8Dn150
WL-UVCP-28802880200220V/50Hz304SS1630x377x1500320Wx9Dn150
WL-UVCP-38403840250220V/50Hz304SS1630x426x1500320Wx12Dn250

Technical Parameters

Note:

1.Lamp service life≥9000H

2.UVCn: thread connection; UVC: flange connection; UVCP: flange connection; all the control box are painted carbon steel.

3.Can be equipped with manual cleaning device, automatic flushing device, or advanced online monitoring instrument and remote control system.
