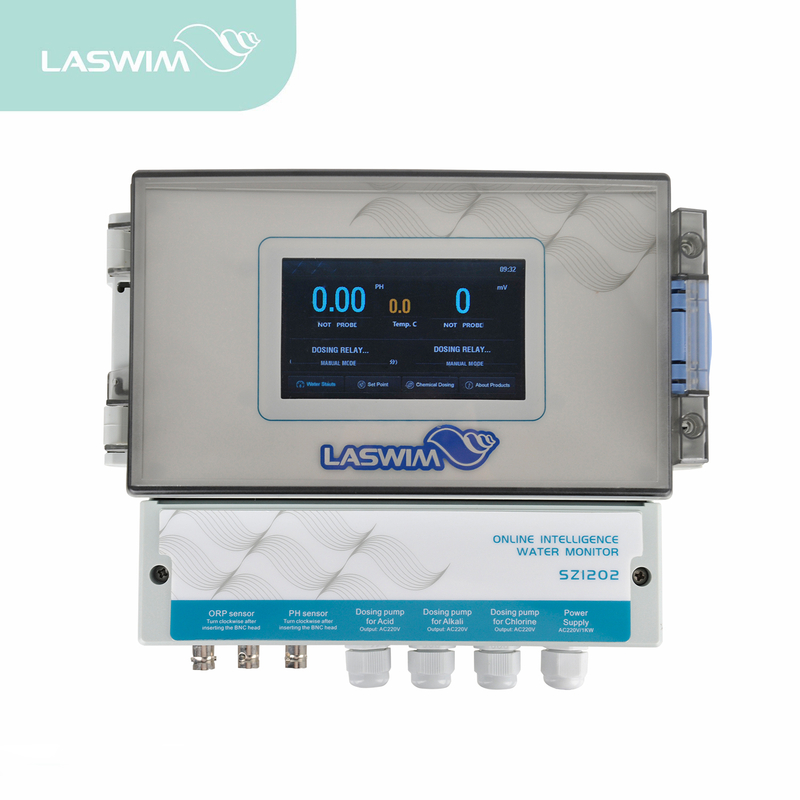

Touch Intelligent Water Quality Monitor

  • Electrode plug and play, no conversion module is needed, three-point probe calibration, more precise data. Water quality parameter standards include European, Chinese and other national standards;
  • Switch free between Chinese and English interfaces, more convenient to operate by full touch screen.
  • Less failure, high accuracy, low maintenance.
  • Can control 3 sets of dosing pump.
Availability:
Quantity:
  • WL-SZI202
  • LASWIM

TOUCH INTELLIGENT WATER QUALITY MONITOR

DISINFECTING EQUIPMENT

  • Electrode plug and play, no conversion module is needed, three-point probe calibration, more precise data. Water quality parameter standards include European, Chinese and other national standards;

  • Switch free between Chinese and English interfaces, more convenient to operate by full touch screen.

  • Less failure, high accuracy, low maintenance.

  • Can control 3 sets of dosing pump.


Installation Guide:

  • Close the water valves at the front and back of the installation site to keep the installation section free of water, so as to avoid accidents.

  • The water intake point shall be located behind the water pump and in front of the filter in the return water pipeline of the swimming pool. There is a certain pressure difference between the water inlet and the outlet to make the water flow through the flow trough. Use tools to drill a DN15 hole at this main pipeline or change it to DN15 through tee, and fix the DN15 ball valve at the water intake.

  • Install the acrylic flow through and the water quality monitor. Use the wall mounting method to connect the flow through with the DN15 ball valve of the water intake through 6*4mm hose.

  • The water outlet of the flow trough is directly discharged by pressure relief through 6*4mm hose(discharged to the water collecting well or returned to the equalization tank).

  • Open the water valve to confirm whether there is water flow through the flow trough and the water flow is enough.

英文画册20220608-53

Product ModelWL-SZI202
PH measurementElectrode method, measurement rang:0-14 PH,measurement accuracy:<0.01PH, suitable temperature:0-80℃
ORP measurementElectrode method, measurement rang:0-+1200mv,measurement accuracy:<2mv, suitable temperature:0-80℃
Input power220-250V,50-60Hz
Output3 set of dosing pump output(5A, 220V-240V)
Display4.3 inch LCD screen
OperationTouch
Outlook dimensions220(height)*235(width)*70(depth)mm
Weight1.7kg
Installation methodWall-mounted
Housing materialPlastic
Protection gradeIP65
Working environmentNormal temperature and keep dry
OthersBuilt-in water quality standards. Support Chinese and English bilingual
