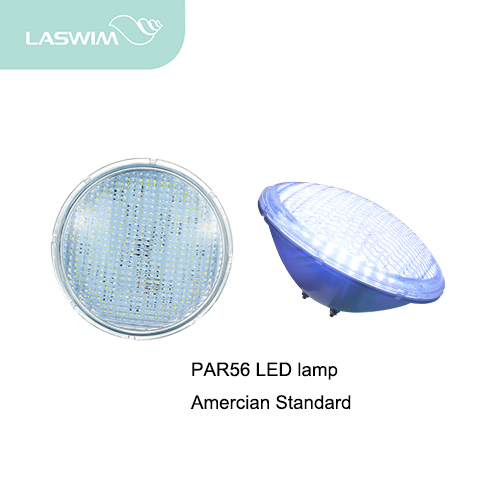

PAR56 lamp, LED and halogen lamp are available.
American standard PAR56, available to replace of PAR56 underwater lights.
DIP LED using potting form for packaging. Potting process is injecting liquid epoxy resin in LED the molding cavity at first, and then insert the pressure LED bracket welding good put them into the oven for epoxy resin after curing in order to make the LED molded from the mold cavity. Due to the simple fabrication process, low cost, it has a higher market share. In large volume, can be used to artificial insert or AI machine operation, because the DIP LED high brightness, easy to waterproof processing, so this kind light source widely used in general pool lights, and high power available as well.
DIP LED Features:
High brightness, high efficiency, low power consumption
High quality silicon gasket, it’s not easy to age, seepage and leak
Life span: 10,000-100,000 hours
Safety voltage: AC 12V
Waterproof standard: IP68
Color: cool white, warm white, RGB and single blue
RGB mode features 19 pre-programmed lighting patterns
Installation mode: housing type with niche, wall mount type non-niche
Applicable to concrete pool, fiberglass pool, liner pool, etc.
Variable voltage AC12V-20V led lights would provide you with much better and reliable quality even though your pool power supply with voltage fluctuation. The working performance of your pool lights would be ensured as well as their lifespan.
Variable voltage LED light features:
Safe low voltage: AC12V-20V
Can be applied to the voltage fluctuation range of occasion
No flicker, high purity, soft light, no glare
High brightness (high lumen), strong light transmission
Low power consumption, low heat while working
Housing type installation mode: compatible to concrete pool, fiberglass pool, stainless steel pool, liner pool
SMD LED is attached on the surface of PCB, suitable for SMT processing, can be reflow, solves the brightness, angle of view, flatness, consistency, reliability and other issues, the lighter PCB plate and a reflecting layer material, improvement of removing heavier carbon steel pin of DIP LED , the display epoxy resin less reflective layer to fill, to reduce the size, reduce weight. Thus, surface mount LED can easily integrate product weight by half; eventually make the application more perfect.
SMD LED light features:
High efficient SMD LED, power saving up to 80% consumption than halogen lamp and incandescent lamp
Super high brightness, low maintenance cost, super competitive cost
Good seal, non-corrosive
Beam angle: 120°
Safety low voltage: AC 12V
Waterproof standard: IP68
Standard cable: 2.0meters
The halogen light bulb or lamp is a type of incandescent lamp which uses a halogen gas in order to increase both light output and rated life. They are known for moderately high efficiency, quality of light, and high rated life compared to regular incandescent lamps.
Halogen / Incandescent bead/Lamp cup features:
Super brightness, high efficient
Safe low voltage: AC12V
Competitive cost
Waterproof standard: IP68
Compatible to different pools: concrete pool, fiberglass pool, stainless steel pool, liner pool, etc.
PAR56 lamp relative light fixture
Model | Power(w) | Voltage(v) | LED QTY | Light source | Color | Lumination (lux) | Optional: remote control |
WL-PAR-LED252BB | 18W | 12V | 252 | Standard DIP LED | White | 530 | × |
WL-PAR-LED252BC | 18W | 12V | 252 | Standard DIP LED | RGB | 257 | √ |
WL-PAR-LED012PB | 12W | 12V | 12 | High power LED | White | 885 | × |
WL-PAR-LED012PC | 12W | 12V | 12 | High power LED | RGB | 200 | × |
WL-PAR-LED024PB | 24W | 12V | 24 | High power LED | White | 1300 | × |
WL-PAR-LED024PC | 24W | 12V | 24 | High power LED | RGB | 352 | × |
WL-PAR-LED036PB | 36W | 12V | 36 | High power LED | White | 1395 | × |
WL-PAR-LED036PC | 36W | 12V | 36 | High power LED | RGB | 410 | × |
WL-PAR-LED018JTB | 18W | 12V | 54 | SMD LED | White | 1185 | × |
WL-PAR-LED018JTC | 18W | 12V | 54 | SMD LED | RGB | 245 | √ |
WL-PAR-LED024JTB | 24W | 12V | 72 | SMD LED | White | 1240 | × |
WL-PAR-LED024JTC | 24W | 12V | 72 | SMD LED | RGB | 375 | √ |
WL-PAR-LED162JTB | 18W | 12V-20V | 162 | Wide voltage | White | 1500 | × |
WL-PAR-LED162JTC | 18W | 12V-20V | 162 | Wide voltage | RGB | 970 | × |
WL-PAR-LED216JTB | 24W | 12V-20V | 216 | Wide voltage | White | 2150 | × |
WL-PAR-LED216JTC | 24W | 12V-20V | 216 | Wide voltage | RGB | 1500 | × |
WL-PAR-LED16PCWS | 18W | 12V-20V | 16 | Wide voltage | RGBWS | 1380 | × |
