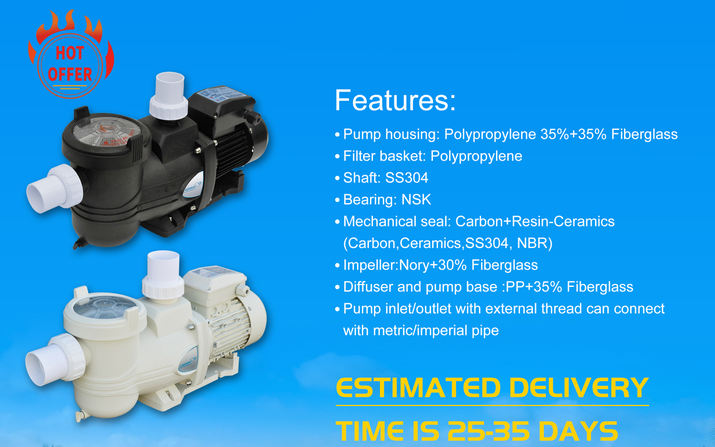

LASWIM HLLF SERIES PUMP

HLLF SERIES PUMP

Material:

Pump housing : Polypropylene 35%+35% Fiberglass

Filter basket : Polypropylene

Shaft：SS304

Bearing: NSK

Mechanical seal: Carbon+Resin-Ceramics(Carbon, Ceramics, SS304, NBR)

Impeller: Noryl+30% Fiberglass

Diffuser and pump base: PP+35% Fiberglass

Features:

·Pump inlet/outlet with external thread can connect with metric/imperial pipe, more convenient to operate.
·The pump can bear 25000 times of impact test, excellent performance and reliable quality.
·Lower noise, 0.75HP can lower than 65Db.
·Liquid temperature: 5-50ºC
·Maximum working pressure: 2.5bar
·Waterproof: IP55
·Ambient temperature: up to 45ºC
·Thermal protection included
·Motor: 3000 r.p.m
·Single phase: 220V/50HZ
220V/60HZ, 380V/50HZ are available on request
