LASWIM BDP SERIES POOL PUMP

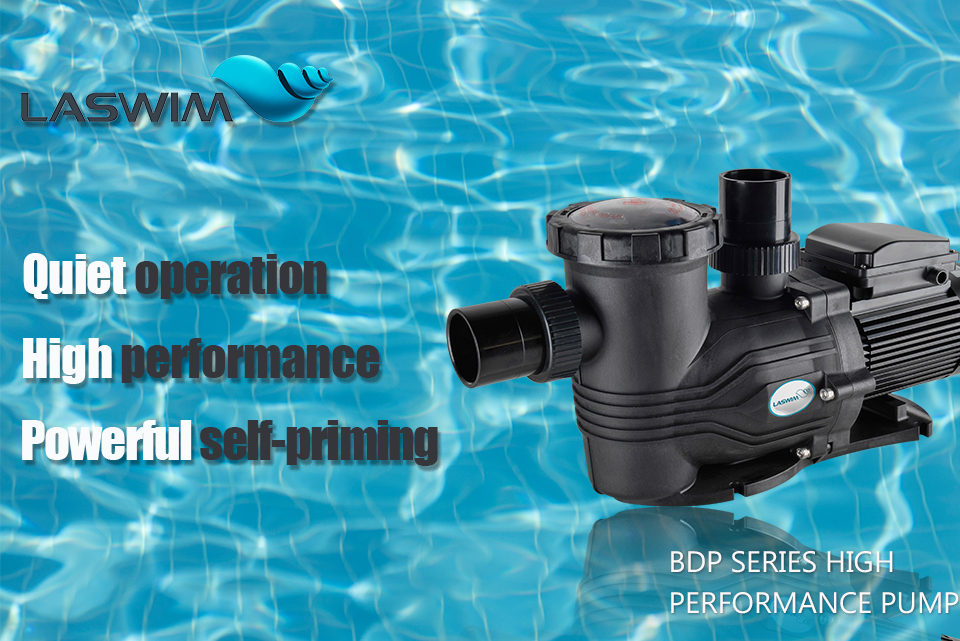

BDP SERIES HIGH PERFORMANCE PUMP
BDP series high performance plastic centrifugal pump delivers high flow rates. It's designed for the commercial swimming pool, spa, waterfall and water features to achieve the maximum working efficiency with the lowest noise. Suitable for operation with salt chlorinators and sea water.

Highlight Features:
1.High efficiency motors IE3.
2.IPX5 waterproof standard.
3.Asynchronous , two poles.
4.Insulation class: F.
5.The advanced diffuser and high efficiency turbine maximize water flow and energy efficiency while minimizing turbulence and noise.
6.Self-priming up to 3M above water level.
7.Built-in thermal protection and overload protection.
8.The oversized pre-filter basket (5L) extends the interval between cleanings.

Material:
1.Pump Housing : PP+35%GF
2.Filter basket: PP
3.Shaft: 316L
4.Mechanical Seal: stationary face-SIC, rotating face-Graphite, seal bellows-NBR, Spring-316L
5.Impeller: PPO+30% GF
6.Diffuser: PPO+30% GF
7.Pump base: PP+30% GF
