KBP Series
LASWIM

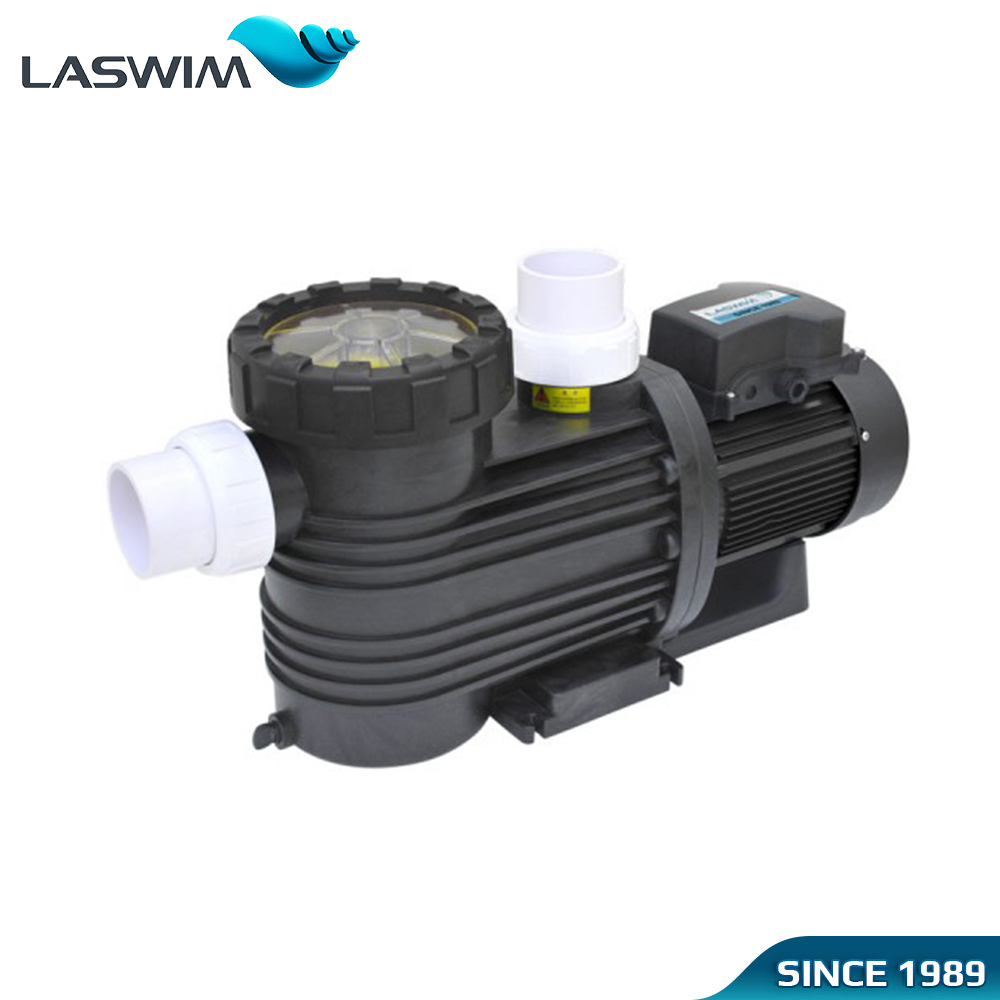

KBP seawater pump is a series of sturdy and durable pump with high head and sufficient flow. The body has strong sealing, corrosion resistance and pressure resistance. Suitable for all kinds of aquaculture ponds and seawater ponds.
Features
Protection: IP55.
Large flow rate.
Low noise level.
Excellent bearing pressure performance up to 6kg/cm².
Shaft: Stainless steel 316.
Mechanical seal: Graphite / Ceramic seal.
KBP seawater pump is a series of sturdy and durable pump with high head and sufficient flow. The body has strong sealing, corrosion resistance and pressure resistance. Suitable for all kinds of aquaculture ponds and seawater ponds.
Features
Protection: IP55.
Large flow rate.
Low noise level.
Excellent bearing pressure performance up to 6kg/cm².
Shaft: Stainless steel 316.
Mechanical seal: Graphite / Ceramic seal.
Model | Horsepower(HP) | Rated Power(KW) | Voltage(V) | Connection size(inch) | Speed (rpm) | L(mm) | W(mm) | H(mm) |
WL-KBP400 | 4 | 3.0 | 380 | 2.5" | 2850 | 750 | 221 | 373 |
WL-KBP500 | 5 | 3.8 | 380 | 2.5" | 2850 | 750 | 221 | 373 |
WL-KBP550 | 5.5 | 4.0 | 380 | 2.5"/3" | 2850 | 770 | 221 | 373 |
WL-KBP750 | 7.5 | 5.5 | 380 | 2.5"/3" | 2850 | 780 | 221 | 373 |
Model | Horsepower(HP) | Rated Power(KW) | Voltage(V) | Connection size(inch) | Speed (rpm) | L(mm) | W(mm) | H(mm) |
WL-KBP400 | 4 | 3.0 | 380 | 2.5" | 2850 | 750 | 221 | 373 |
WL-KBP500 | 5 | 3.8 | 380 | 2.5" | 2850 | 750 | 221 | 373 |
WL-KBP550 | 5.5 | 4.0 | 380 | 2.5"/3" | 2850 | 770 | 221 | 373 |
WL-KBP750 | 7.5 | 5.5 | 380 | 2.5"/3" | 2850 | 780 | 221 | 373 |
