KAP Series
LASWIM

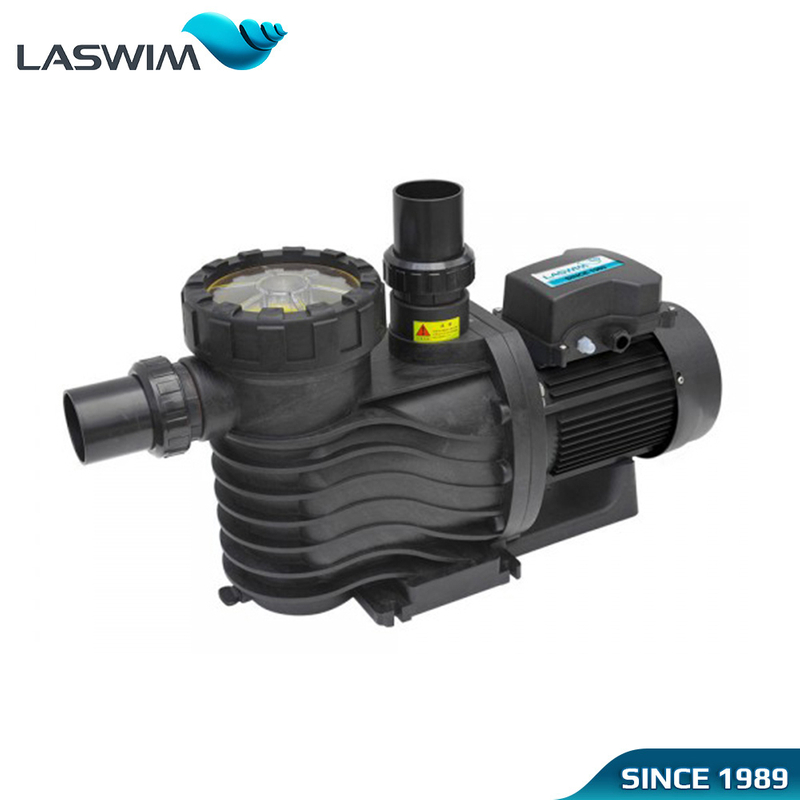

KAP series seawater pump is with simple design, easy to install and maintain. Adopts special impeller for greater suction efficiency. The body is constructed of special materials, with excellent bearing pressure performance up to 6kg/cm². Suitable for all kinds of aquaculture ponds and seawater ponds.
Features
Protection: IP55.
Large flow rate.
Low noise level.
Excellent bearing pressure performance up to 6kg/cm².
Shaft: Stainless steel 316.
Mechanical seal: Graphite / Ceramic seal.
QH. Curve of The Pump
KAP series seawater pump is with simple design, easy to install and maintain. Adopts special impeller for greater suction efficiency. The body is constructed of special materials, with excellent bearing pressure performance up to 6kg/cm². Suitable for all kinds of aquaculture ponds and seawater ponds.
Features
Protection: IP55.
Large flow rate.
Low noise level.
Excellent bearing pressure performance up to 6kg/cm².
Shaft: Stainless steel 316.
Mechanical seal: Graphite / Ceramic seal.
QH. Curve of The Pump
Model | Horsepower(HP) | Rated Power(KW) | Voltage(V) | Connection size(mm) | Weight(kg) | L(mm) | W(mm) | H(mm) |
WL-KAP150 | 1.5 | 1.1 | 220 | 63 | 20.8 | 700 | 221 | 378 |
WL-KAP200 | 2 | 1.5 | 220 | 63 | 22.0 | 700 | 221 | 378 |
WL-KAP300 | 3 | 2.2 | 220/380 | 63 | 24.0 | 700 | 221 | 378 |
WL-KAP350 | 3.5 | 2.6 | 220/380 | 63 | 25.0 | 700 | 221 | 378 |
Model | Horsepower(HP) | Rated Power(KW) | Voltage(V) | Connection size(mm) | Weight(kg) | L(mm) | W(mm) | H(mm) |
WL-KAP150 | 1.5 | 1.1 | 220 | 63 | 20.8 | 700 | 221 | 378 |
WL-KAP200 | 2 | 1.5 | 220 | 63 | 22.0 | 700 | 221 | 378 |
WL-KAP300 | 3 | 2.2 | 220/380 | 63 | 24.0 | 700 | 221 | 378 |
WL-KAP350 | 3.5 | 2.6 | 220/380 | 63 | 25.0 | 700 | 221 | 378 |
