HLVSP
LASWIM

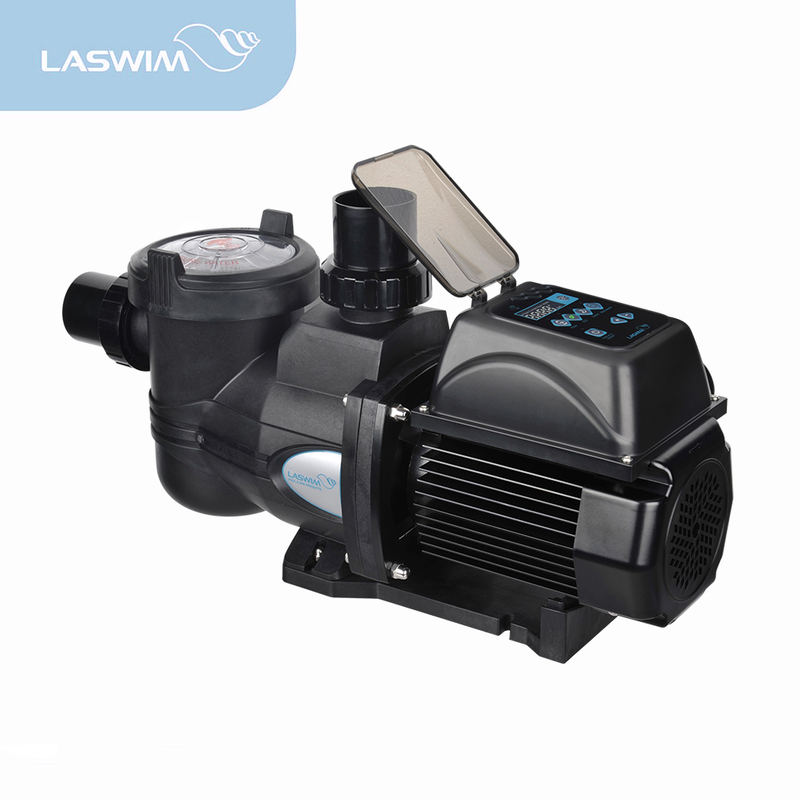

HLVSP series
Intelligent Permanent Magnetism Variable Speed pump that you can rely on.
Product Introduction
LASWIM creatively combines the most advanced technology with the professionally designed hydraulic structure of the swimming pool pump to create a more usable, quieter, more intelligent, more efficient and less expensive variable speed pool pumps.
Material
Pump housing: PP+35%
Filter basket: PP
Shaft: 316
Mechanical Seal: stationary face-SIC, rotating face-Graphite, seal bellows-NBR, Spring- 316L
Impeller: PPO+30% GF
Diffuser: PPO+30% GF
Intelligent HLVSP variable speed pump
Fully intelligent inverter technology, all application scenarios, precise control of pump operation.
The pump can be remotely programmed and easily controlled with a smartphone.
Easy to operate
Quieter than ever before
Smart variable speed pumps always run at their best.
Pump motor
Intelligent permanent magnet synchronous brushless motor allows 500-2900RPM stepless speed regulation.
Smooth operation, quieter, low maintenance cost, longer service life.
Stepless speed regulation, more stable, no electric spark, no interference.
Lower energy consumption, high efficiency, low vibration.
IE4 motor, energy saving and eco-friendly.
Professional hydraulic structure design
30+ years experience in swimming pool field and professional hydraulic structure design.
Larger flow, higher head.
Efficiency and performance improvements
Less vibration and noise.
Intelligent
All operations can be completed via mobile APP.
Support centralized management of multiple devices, you can check the status of the water pump in real time, customize functions and the protection against accidental power failure.
Support OTA upgrade, support firmware update.
Quiet
HLVSP pumps reduce operating noise， featuring an upgraded motor drive that delivers quieter high-speed operation.
Sound level 45dB in 1 meter at the speed of 1400rpm.
Energy saving
HLVSP pumps reduce the energy by up to 90%, saving up to 12,614kWh
(2hp pump runs in 365days).
High energy efficiency
High efficiency motor IE4.
Ambient temperature: up to 45°C (113°F )
Insulation Class: F
IP55 waterproof standard.
Liquid temperature:5~50°C (41~122°F)
Maximum working pressure: 0.35bar
