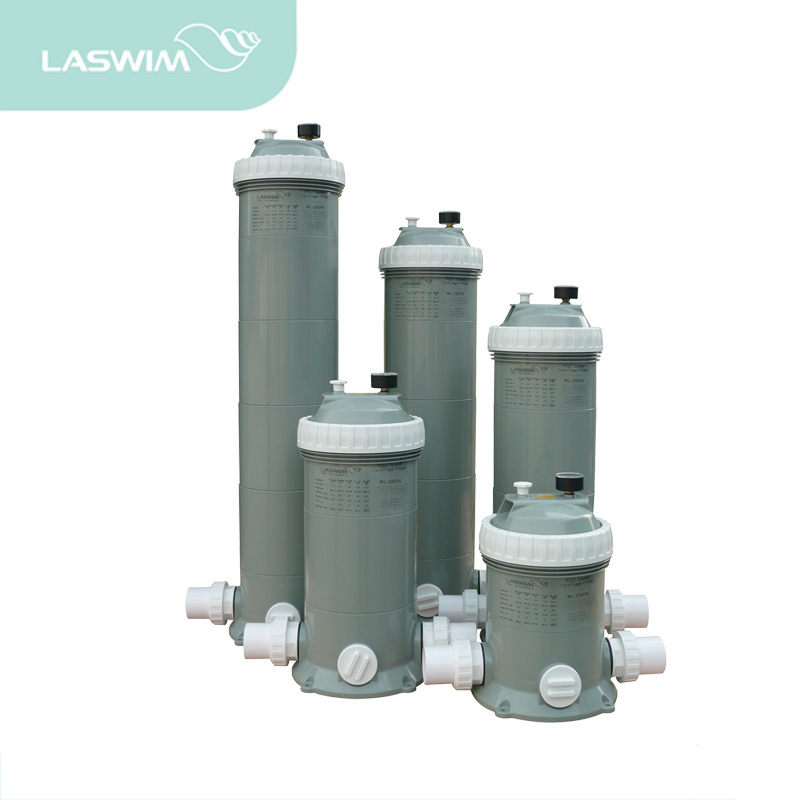

CARTRIDGE FILTER
Features
Compact and light weight
UV resistant tank
Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
Screw type air bleeder for easy removal of trapped air inside the filter tank.
High quality oil filled pressure gauge for easy inspection of the operation pressure.
Application to swimming pool & spa.
Model | Pipe Size | Filter Area(m2) | Design Flow(m3/h) | Micron (μm) | Tank Diameter (mm) | Tank Height(mm) | ||
inches | mm | m³/h | lpm | |||||
WL-ZXG25 | 1.5 | 50 | 2.25 | 5.5 | 92 | ≤20 | 225 | 368.3 |
WL-ZXG50 | 1.5 | 50 | 4.63 | 11.4 | 190 | ≤20 | 225 | 548.3 |
WL-ZXG75 | 1.5 | 50 | 7 | 17 | 283 | ≤20 | 225 | 728.3 |
WL-ZXG100 | 2 | 50 | 9.4 | 22.9 | 382 | ≤20 | 225 | 908.3 |
WL-ZXG150 | 2 | 63 | 13.72 | 33.4 | 556 | ≤20 | 225 | 1088.3 |
WL-ZXG200 | 2 | 63 | 16.82 | 40.9 | 681 | ≤20 | 225 | 1268.3 |
Maximum Working Pressure :250kpa/36psi/2.5bar
Maximum Temperature:40ºC(104F)
