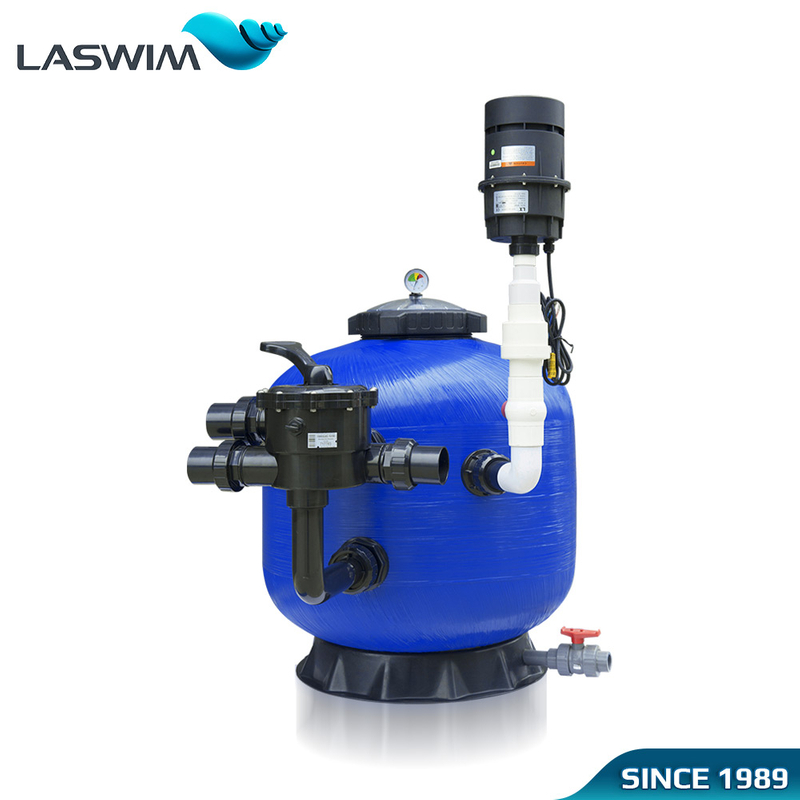

Bead Filter

WL-BFG bead biological filter is a closed pressure filter, not only designed with nice and modern apperance, but also minimizes the size of filtration system compare to the traditional one. The installation and operation is very simple, and function is very complete. It provides mechnical filtration and biological filtration at a single unit, with bobbin-wound fiberglass reinforced tank, 6-way multiport valve, piping, circulation pump, air blower, control box and base.
Availability:
Quantity:
  • WL-BFG series
  • LASWIM

BIOLOGICAL FILTER

LIFE SUPPORT SYSTEM
Bead filter is a closed pressure filter containing food grade polyethylene granules or beads. The form and size of the beads create a large surface on which bacteria and suspended solid can attached it. It provides mechanical and biological filtration at a single unit which compete with bobbin wound filter, 6-way multiport valve, pipings, circulation pump, air blower, control box and base. It has been engineered uniquely for pond and aquarium.


Detailed Photos

2 (1)

Product Parameters
Model Design Flow Pond Size(m³) Fish Load(kg) Blower(watt) Media(kg) Filter Diameter(mm) Filter Height(mm)
m³/h lpm
WL-BFG450 8 133 6 20 400 18 450 660
WL-BFG500 11 183 10 35 400 30 500 730
WL-BFG650 16 267 30 78 400 50 650 745
WL-BFG700 19 317 34 94 900 75 700 830
WL-BFG800 25 417 52 124 900 100 800 905
WL-BFG900 30 500 73 172 1000 125 900 1005
WL-BFG1200 42 700 148 310 2*1000 325 1200 1325
