WL-ADG series
LASWIM
84212110

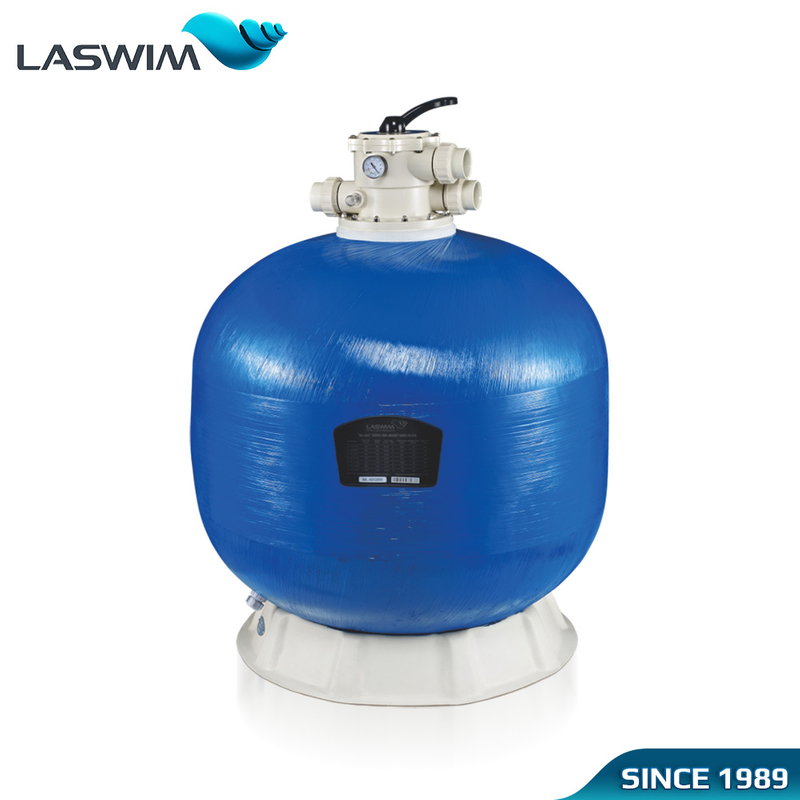

Top mount sand vertical filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive extra-thick fibreglass filament winding, all internal components and connections are injection moded PVC. UV-resistance surface allows working under sunshine. Easy-to-use six-position valve makes you select any of the valve/filter operation in a proper way.
* Six-way Multiport Valve Function:
* FILTER (Normal filteration and vacuuming).
* BACKWASH (Clean filter by reversing the flow).
* RINSE (Used after backwash to flush dirt from valve).
* WASTE (By-pass filter, used for vacuuming to waste or lowering water level).
* RECIRCULATE (By-passes filter for circulating water to pool).
* CLOSE
Technical parameters:
| Model | Pipe Size (inches) | Filter Area (m2) | Design Flow (m3/h) | 0.5-0.8mm Sand Weight (Kg) | Tank Volume (m3) | Valve Volume (m3) | Tank Weight (Kg) | Volume Weight (Kg) |
| WL-ADG350 | 1.5 | 0.10 | 4.5 | 25 | 0.06 | 0.02 | 4.5 | 3 |
| WL-ADG400 | 1.5 | 0.13 | 6.5 | 34 | 0.09 | 0.02 | 5.5 | 3 |
| WL-ADG450 | 1.5 | 0.16 | 8.0 | 50 | 0.15 | 0.02 | 7.0 | 3 |
| WL-ADG500 | 1.5 | 0.23 | 11.5 | 80 | 0.20 | 0.02 | 9.8 | 3 |
| WL-ADG650 | 1.5 | 0.32 | 16.0 | 160 | 0.32 | 0.02 | 13.0 | 3 |
| WL-ADG700 | 1.5 | 0.40 | 20.0 | 220 | 0.42 | 0.02 | 18.5 | 3 |
| WL-ADG800 | 2.0 | 0.50 | 25.0 | 370 | 0.68 | 0.03 | 41.0 | 5 |
| WL-ADG900 | 2.0 | 0.64 | 30.0 | 447 | 0.95 | 0.03 | 48.0 | 5 |
| WL-ADG1000 | 2.0 | 0.79 | 35.0 | 700 | 1.29 | 0.03 | 58.0 | 5 |
| WL-ADG1200 | 2.0 | 1.13 | 50.0 | 1200 | 2.26 | 0.03 | 68.0 | 5 |
| WL-ADG1400 | 2.0 | 1.53 | 68.0 | 1700 | 3.50 | 0.03 | 110.0 | 5 |
Maximum working pressure: 36psi/2.5kg/cm²
Maximum operating water temperature≤ 50 degree C
Maximum testing pressure: 60psi
Optional: Maximum working pressure: 58psi/4.0kg/c㎡
Maximum operating water temperature ≤50℃
Maximum testing pressure: 86psi
